Apc

Netshelter SX Roof Fan Tray 208-230 VAC

Netshelter SX Roof Fan Tray 208-230 VAC

SKU:ACF504

$619.20 SGD
Shipping calculated at checkout.

WhatsApp us to confirm stock availability before placing your order.

View full details
Description Specifications
Miscellaneous
Additional Information
  • Cools by exhausting heat out of the roof of the rack
  • Audible noise at 1 meter from surface of unit

Input Connections:

  • IEC-320 C14
  • Schuko CEE 7/7P
Package Contents

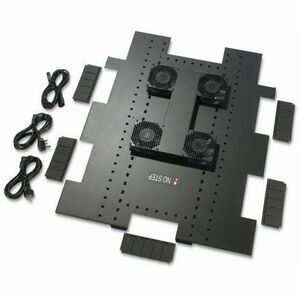

  • Roof Fan Tray for NetShelter SX 750mm Enclosures
  • Installation guide
    		•
    Compatibility

    NetShelter SX 750mm Enclosures
    Certifications & Standards
    • CSA C22.2 No. 60950
    • PSE
    • UL 60950
    Environmentally Friendly Yes
    REACH Declaration URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=758490&lang=en-us
    EU RoHS Declaration URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=758490&lang=en-us
    REACH free of SVHC Yes
    Physical Characteristics
    Weight (Approximate) 10.23 kg
    Height 60 mm
    Width 724 mm
    Depth 893 mm
    Product Color Black
    Color Family Black
    Power Description
    Input Voltage 208 V AC
    Technical Information
    Receptacle Type BS1363A
    Receptacle Type IEC 60320 C14
    Receptacle Type Schuko CEE 7/EU1-16P
    Maximum Air Flow 12.5 m³/min
    Maximum Noise Level (A-Weighted) 62 dB(A)
    Warranty
    Additional Warranty Information 2 years repair or replace
