Apc
SKU:APDU10350ME
Couldn't load pickup availability
WhatsApp us to confirm stock availability before placing your order.
View full details
| Interfaces/Ports | |
|---|---|
| Network (RJ-45) | Yes |
| Miscellaneous | |
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Green Premium | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=APDU10350ME_ROHS_DECLARATION&p_FileName=APDU10350MEKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=552062995&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=552062995&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712014_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712014_EN |
| REACH free of SVHC | Yes |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Physical Characteristics | |
| Weight (Approximate) | 8.40 kg |
| Form Factor | Rack |
| Rack Height | 0U |
| Cord Length | 1.80 m |
| Height | 1780 mm |
| Width | 56 mm |
| Depth | 75 mm |
| Mounting Orientation | Vertical |

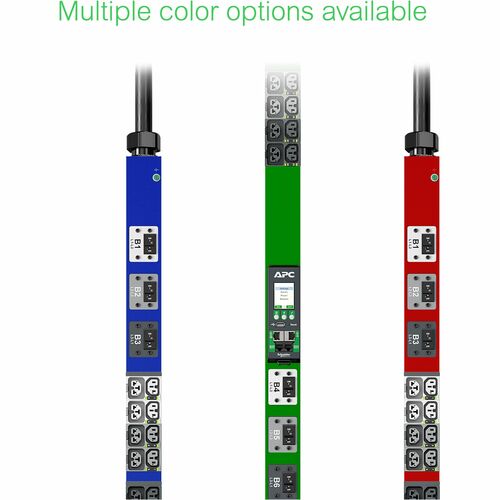

| Product Color | Black |
| Color Family | Black |
| Power Description | |
| Input Voltage | 415 V |
| Input Voltage | 480 V |
| Output Voltage | 240 V AC |
| Input Current | 30 A |
| Input Voltage Range | 200 V AC - 240 V AC |
| Input Voltage Range | 346 V AC - 415 V AC |
| Power Rating (VA) | 17.30 kVA |
| Power Rating (Watt) | 17.30 kW |
| Technical Information | |

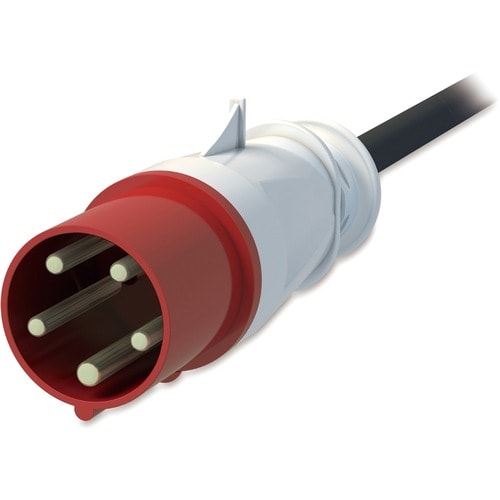

| Plug/Connector Type | IEC 60309 30A 3P+N+PE |
| Phase | Three Phase |
| Receptacle Type | IEC 60320 C13/C15 |
| Receptacle Type | IEC 60320 C13/C15/C19/C21 |
| PDU Type | Metered |

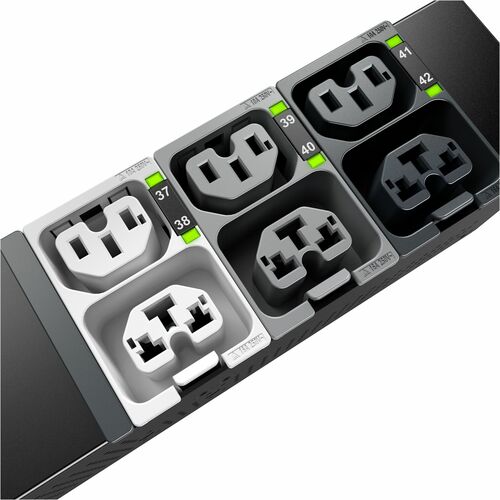

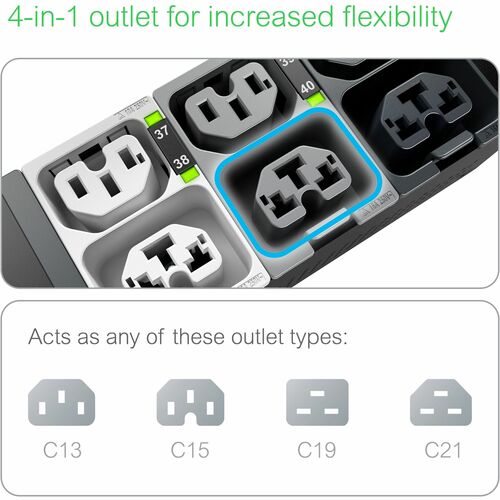

| Receptacle Detail | 24 x IEC 60320 C13/C15/C19/C21 |
| Receptacle Detail | 24 x IEC 60320 C13/C15 |
