Battery Information | |
---|---|
Battery Chemistry | Lead Acid |
Battery Energy | 388.8 kJ |
Backup/Run Time (Half Load) | 7.70 Minute |
Backup/Run Time (Full Load) | 1 Minute |
DC System Voltage | 12 V DC |
Typical Battery Recharge Time | 8 Hour |
Controls/Indicators | |
Status Indicators |
LED Status Display:
|
Environmental Conditions | |
Maximum Operating Temperature | 40°C |
Maximum Operating Elevation | 3 km |
Maximum Storage Elevation | 3 km |
Sound Emission (A-Weighted) | 40 dB(A) |
Miscellaneous | |
Package Contents | |
Physical Characteristics | |
Weight (Approximate) | 6 kg |
Form Factor | Wall Mountable |
Height | 160 mm |
Width | 120 mm |
Depth | 355 mm |
Product Color | Black |
Color Family | Black |
Power Description | |
Input Voltage | 230 V AC |
Output Voltage | 230 V AC |
Surge Energy Rating | 273 J |
Waveform Type | Stepped Approximated Sine Wave |
Input Voltage Range | 140 V AC - 300 V AC |
Output Frequency | 60 Hz |
Input Frequency | 60 Hz |
Load Capacity (VA) | 900 VA |
Technical Information | |
Application/Usage | Network Gateway Device |
Application/Usage | Office |
Application/Usage | Home |
Application/Usage | Electronic |
Application/Usage | Critical Low-power Device |
Overload Protection | Yes |

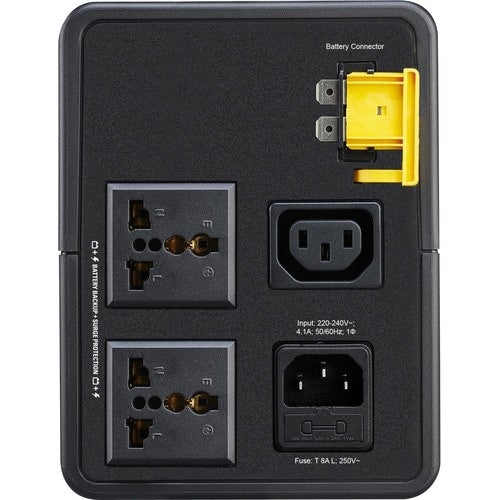

Plug/Connector Type | IEC 60320 C14 |
Receptacle Type | IEC 60320 C13 |
AVR | Yes |
Transfer Time | 6 ms |
Receptacle Detail | 1 x IEC 60320 C13 |
