Battery Information | |
---|---|
Battery Chemistry | Lead Acid |
Hot Swappable | Yes |
Number of Batteries | 1 |
Backup/Run Time (Half Load) | 16.18 Minute |
Backup/Run Time (Full Load) | 6.10 Minute |
Typical Battery Recharge Time | 3 Hour |
Controls/Indicators | |
Status Indicators | Multifunction LCD status and control console |
Environmental Conditions | |
Thermal Dissipation | 100 BTU/h |
Maximum Operating Temperature | 40°C |
Maximum Operating Elevation | 3.05 km |
Maximum Storage Elevation | 15.24 km |
Sound Emission (A-Weighted) | 41 dB(A) |
Interfaces/Ports | |
USB | Yes |
Serial Port | Yes |
USB (HID Compliant) Port | Yes |
Management | |
Alarm | Configurable Delay |
Alarm | On Battery |
Alarm | Low Battery |
Miscellaneous | |
Package Contents |
|
Certifications & Standards |
|
Environmentally Friendly | Yes |
Physical Characteristics | |
Weight (Approximate) | 17.27 kg |
Form Factor | Tower |
Height | 219 mm |
Width | 171 mm |
Depth | 439 mm |
Product Color | Black |
Color Family | Black |
Power Description | |
Input Voltage | 220 V AC |
Output Voltage | 230 V AC |
Waveform Type | Sine Wave |
Input Voltage Range | 170 V AC - 300 V AC |
Output Frequency | 60 Hz |
Input Frequency | 60 Hz |
Load Capacity (VA) | 1 kVA |
Technical Information | |

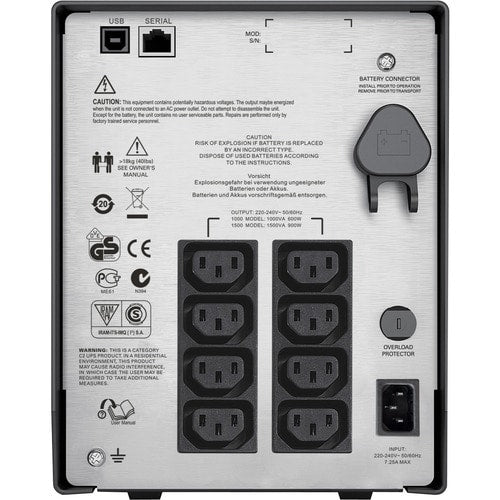

Plug/Connector Type | IEC 60320 C14 |
Receptacle Type | IEC 60320 C13 |
Receptacle Detail | 8 x IEC 60320 C13 |
