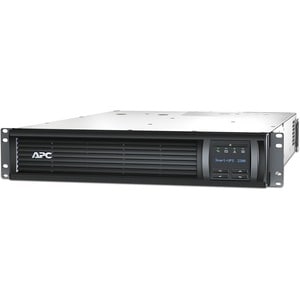

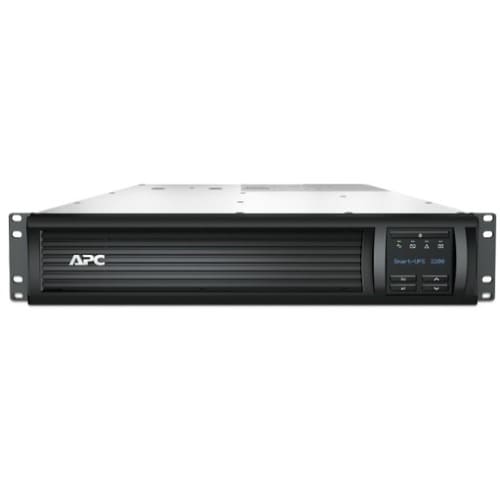

APC Smart-UPS 2200VA LCD RM 2U 230V with - Apc
Battery Information |
Battery Chemistry |
Lead Acid |
Hot Swappable |
Yes |
Backup/Run Time (Full Load) |
5.50 Minute |
Typical Battery Recharge Time |
3 Hour |
Interfaces/Ports |
Network (RJ-45) |
Yes |
Miscellaneous |
Environmentally Friendly |
Yes |
Physical Characteristics |
Weight (Approximate) |
42.31 kg |
Form Factor |
Rack-mountable |
Rack Height |
2U |
Height |
86 mm |
Width |
480 mm |
Depth |
683 mm |
Power Description |
Input Voltage |
230 V AC |
Output Voltage |
230 V AC |
Output Voltage |
240 V AC |
Waveform Type |
Sine Wave |
Input Voltage Range |
160 V AC - 286 V AC |
Load Capacity (VA) |
2.20 kVA |
Technical Information |
Application/Usage |
Server |
Application/Usage |
Router |
Application/Usage |
POS Terminal |
Application/Usage |
Network Hub |
Application/Usage |
Switch |
Receptacle Type |
IEC Jumper |
Receptacle Type |
IEC 60320 C19 |
Receptacle Type |
IEC 60320 C13 |
Number of Battery & Surge Outlets |
12 |
Transfer Time |
10 ms |

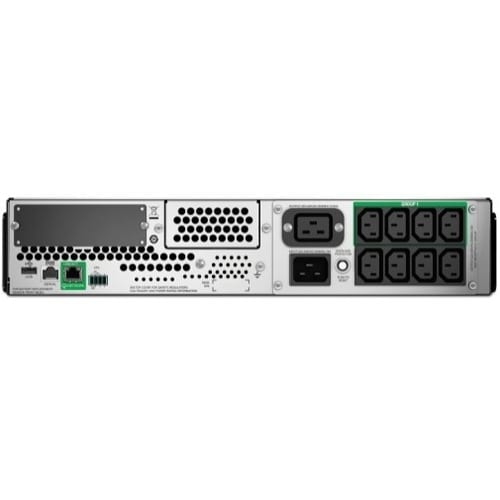

Receptacle Detail |
8 x IEC 60320 C13 |
Receptacle Detail |
3 x IEC Jumper |
Receptacle Detail |
1 x IEC 60320 C19 |
