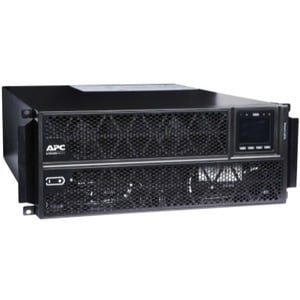

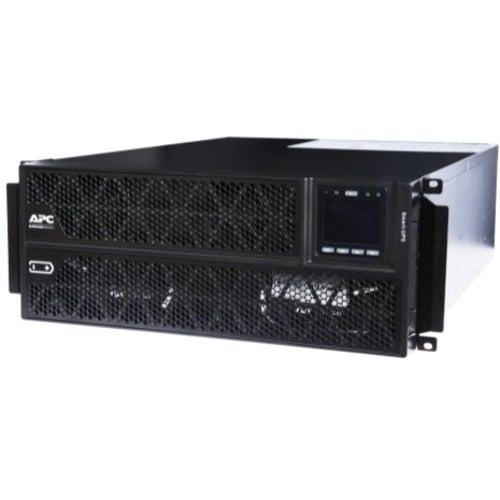

APC Smart-UPS RT 6kVA 230V - Apc
Battery Information |
Battery Chemistry |
Lead Acid |
Battery Energy |
3456 kJ |
Number of Batteries |
2 |
Backup/Run Time (Half Load) |
8.30 Minute |
Backup/Run Time (Full Load) |
2.30 Minute |
Battery Characteristics |
Leak-proof, Sealed, Maintenance-free, Valve-regulated |
Replaceable Battery |
Yes |
DC System Voltage |
96 V DC |
Typical Battery Recharge Time |
4 Hour |
Controls/Indicators |
Status Indicators |
LCD Display Screen: - Output voltage
- Input voltage
- Output frequency
- Run time
- Load
- Battery Health
LED Display:
|
Environmental Conditions |
Sound Emission |
55 dB |
Thermal Dissipation |
1330.74 BTU/h |
Maximum Operating Temperature |
40°C |
Maximum Operating Elevation |
2.01 km |
Maximum Storage Elevation |
15.24 km |
Interfaces/Ports |
Network (RJ-45) |
Yes |
Serial Port |
Yes |
EPO Port |
Yes |
Management |
Alarm |
Low Battery |
Alarm |
On Battery |
Alarm |
Overload |
Physical Characteristics |
Weight (Approximate) |
51.90 kg |
Form Factor |
Rack/Tower |
Height |
177.8 mm |
Width |
440 mm |
Depth |
620 mm |
Power Description |
Output Voltage |
240 V AC |
Output Voltage |
230 V AC |
Output Voltage |
220 V AC |
Waveform Type |
Sine Wave |
Input Voltage Range |
160 V - 285 V |
Output Frequency |
60 Hz |
Input Frequency |
70 Hz |
Load Capacity (VA) |
6 kVA |
Technical Information |
Application/Usage |
Server Room |
Application/Usage |
Network |
Application/Usage |
Branch Office |
Application/Usage |
Business |

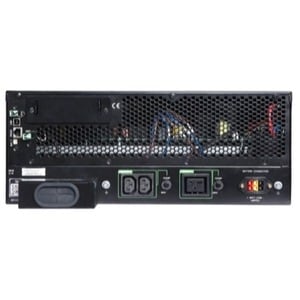

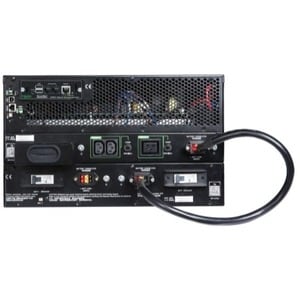

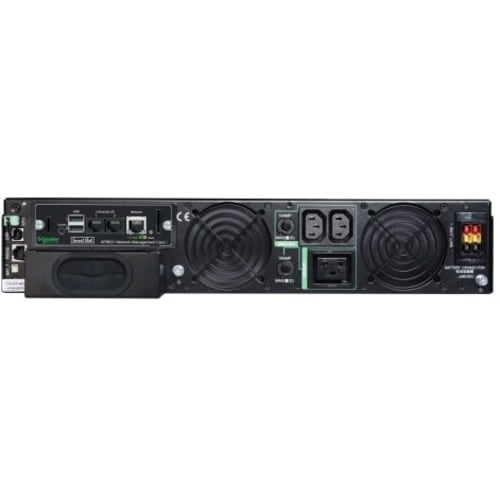

Receptacle Type |
IEC 60320 C13 |
Receptacle Type |
Hard wire 3-wire (H N + E) (Battery Backup) |
Receptacle Type |
IEC 60320 C19 |
Receptacle Detail |
1 x IEC 60320 C19 |
Receptacle Detail |
1 x Hard wire 3-wire (H N + E) (Battery Backup) |
Receptacle Detail |
2 x IEC 60320 C20 |
