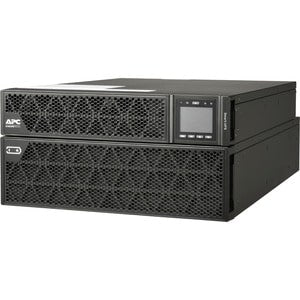

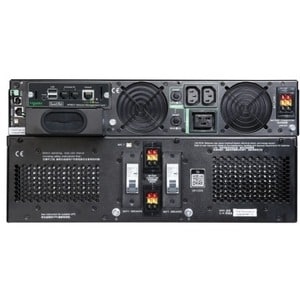

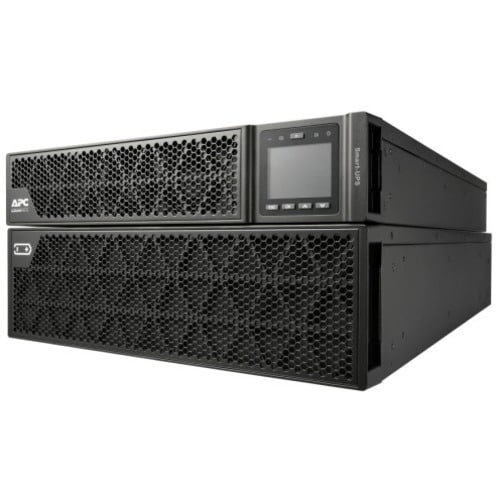

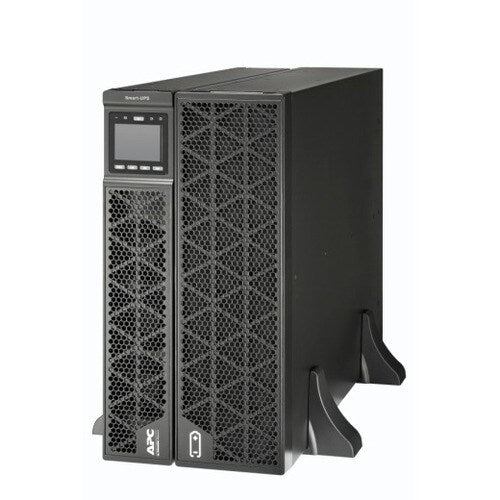

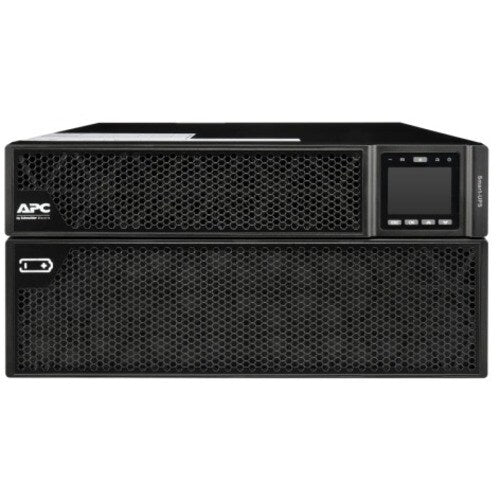

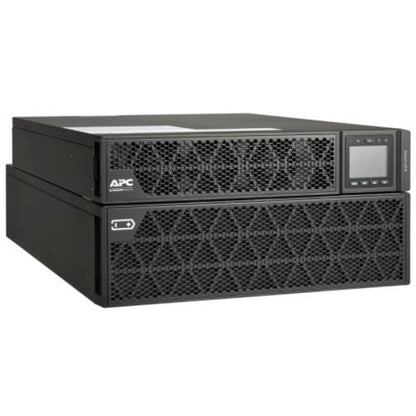

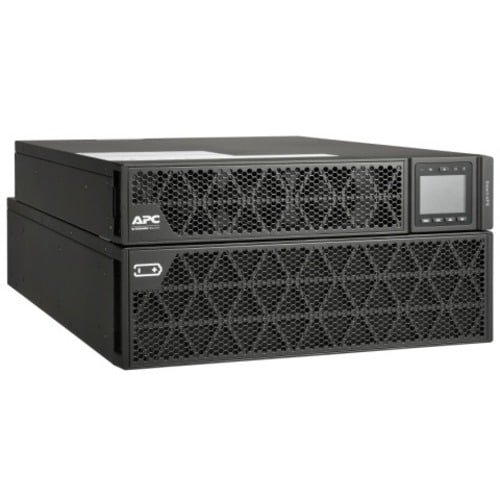

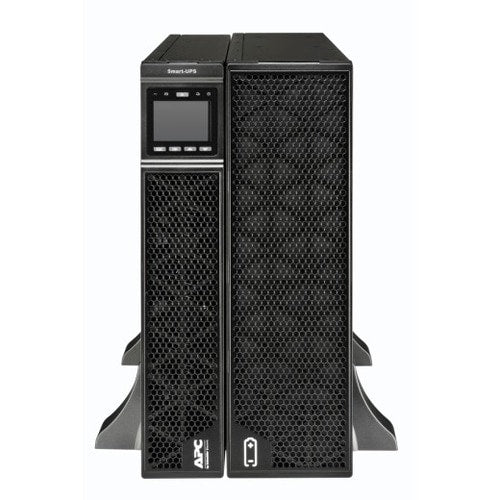

APC Smart-UPS RT 8kVA 230V

APC Smart-UPS RT 8kVA 230V

SKU:SRTG8KXLI

Regular price $6,256.80 SGD
Regular price $0.00 SGD Sale price $6,256.80 SGD
Sale Pre-order with us via Whatsapp
Shipping calculated at checkout.

Click to WhatsApp us to confirm stock availability

View full details
Description Specifications
APC Smart-UPS RT 8kVA 230V - Apc
Battery Information
Battery Life 5 Year
Battery Chemistry Lead Acid
Battery Energy 6048 kJ
Number of Batteries 2
Backup/Run Time (Half Load) 13.70 Minute
Backup/Run Time (Full Load) 4.90 Minute
Battery Characteristics Leak-proof, Sealed, Maintenance-free, Valve-regulated
Replaceable Battery Yes
DC System Voltage 96 V DC
Typical Battery Recharge Time 4 Hour
Controls/Indicators
Status Indicators LCD Display Screen:
  • Output voltage
  • Input voltage
  • Output frequency
  • Run time
  • Load
  • Battery Health
LED Display:
  • On Line
  • On Battery
Environmental Conditions
Sound Emission 55 dB
Thermal Dissipation 1774 BTU/h
Maximum Operating Temperature 40°C
Maximum Operating Elevation 2.01 km
Maximum Storage Elevation 15.24 km
Interfaces/Ports
Network (RJ-45) Yes
Serial Port Yes
EPO Port Yes
Management
Alarm Low Battery
Alarm Overload
Alarm On Battery
Physical Characteristics
Weight (Approximate) 81.20 kg
Form Factor Rack/Tower
Height 217 mm
Width 440 mm
Depth 620 mm
Power Description
Output Voltage 230 V AC
Output Voltage 220 V AC
Output Voltage 240 V AC
Input Voltage Range 160 V - 285 V
Output Frequency 60 Hz
Input Frequency 70 Hz
Load Capacity (VA) 8 kVA
Technical Information
Application/Usage Network
Application/Usage Server Room
Application/Usage Branch Office
Application/Usage Business
Receptacle Type Hard Wire 3-wire (H N + E)
Receptacle Type IEC 60320 C19
Receptacle Type IEC 60320 C13
Receptacle Detail 1 x Hard Wire 3-wire (H N + E)
Receptacle Detail 1 x IEC 60320 C19
Receptacle Detail 2 x IEC 60320 C13
