Apc

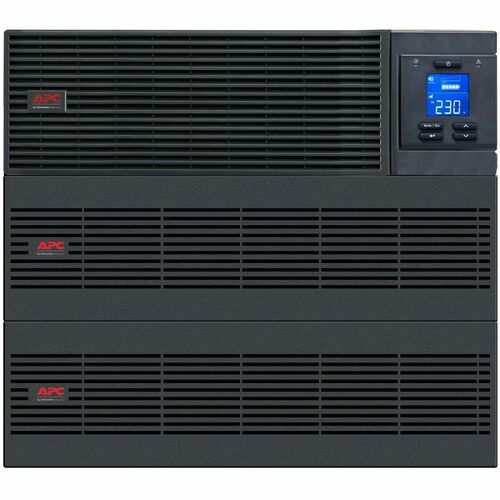

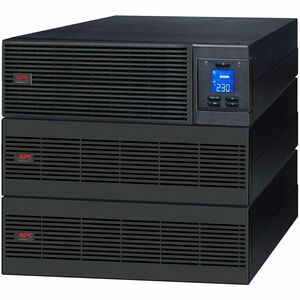

APC EASY UPS ON-LINE SRV RM 15KVA 230V W

APC EASY UPS ON-LINE SRV RM 15KVA 230V W

SKU:SRV15KRILRK

$12,589.50 SGD $7,959.90 SGD
Sale
Shipping calculated at checkout.

WhatsApp us to confirm stock availability before placing your order.

View full details
Description Specifications
Battery Information
Battery Chemistry Lead Acid
Backup/Run Time (Half Load) 14.91 Minute
Backup/Run Time (Full Load) 4.61 Minute
Battery Characteristics Valve-regulated
DC System Voltage 120 V DC
Typical Battery Recharge Time 6 Hour
Display & Graphics
Display LCD
Environmental Conditions
Thermal Dissipation 2503 BTU/h
Maximum Operating Temperature 40°C
Maximum Operating Elevation 3 km
Maximum Storage Elevation 15 km
Sound Emission (A-Weighted) 65 dB(A)
Interfaces/Ports
USB Yes
Serial Port Yes
EPO Port Yes
Management
Network Management RS-232
Network Management SmartSlot
Alarm Overload
Alarm On Battery
Alarm Low Battery
Miscellaneous
Package Contents
  • Easy UPS On-Line SRV 15kVA Rack-Mountable UPS
  • 1 x USB Cable
  • 1 x RS-232 Configuration Cable

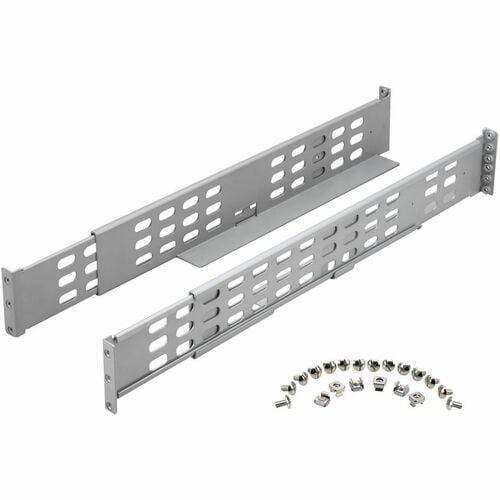

  • 3 x Rack Mounting Brackets
  • 3 x Stabilization/wall Mounting Feet
  • 6 x Jumper Bar

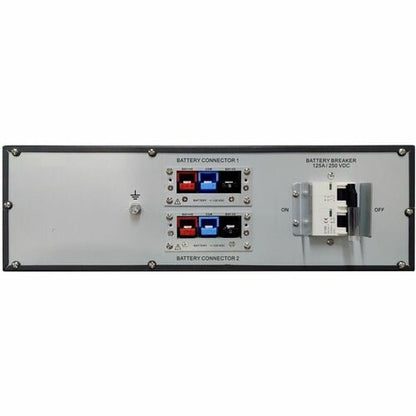

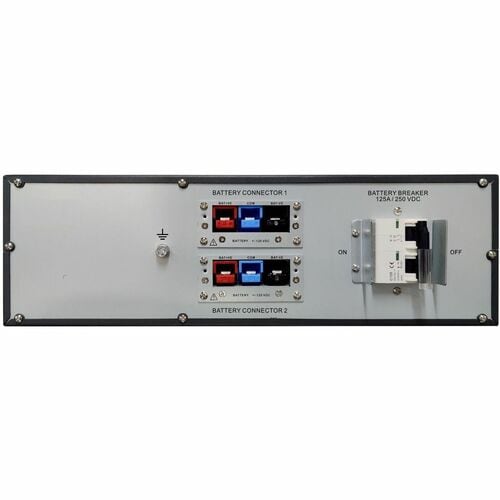

  • 2 x External Battery Pack
  • 1 x Battery Cable
  • User Manual
    		•
    Certifications & Standards
    • CE
    • UKCA
    • EN/IEC 62040-1:2019/A11:2021
    • EN/IEC 62040-2:2006/AC:2006
    • EN/IEC 62040-2:2018
    Environmentally Friendly Yes
    Physical Characteristics
    Weight (Approximate) 157 kg
    Form Factor Rack-mountable
    Rack Height 9U
    Height 393 mm
    Width 438 mm
    Depth 690 mm
    Product Color Black
    Power Description
    Input Voltage 120 V AC
    Input Voltage 230 V AC
    Input Voltage 415 V AC
    Output Voltage 240 V AC
    Output Voltage 220 V AC
    Output Voltage 230 V AC
    Surge Energy Rating 600 J
    Waveform Type Sine Wave
    Input Voltage Range 110 V AC - 300 V AC
    Output Frequency 50 Hz
    Output Frequency 60 Hz
    Input Frequency 70 Hz
    Input Frequency 40 Hz
    Load Capacity (VA) 15 kVA
    Load Capacity (Watt) 15 kW
    Technical Information
    Application/Usage Business
    Application/Usage IT
    Application/Usage Network
    Plug/Connector Type Hard Wire 5-wire (3P + N + E)
    Plug/Connector Type Hard Wire 3-wire (1P + N + E)
    Phase Single Phase
    Receptacle Type Hard Wire 3-wire (1P + N + E)
    Receptacle Detail 1 x Hard Wire 3-wire (1P + N + E)

    Product Summary

    APC by Schneider Electric Easy UPS On-Line Double Conversion Online UPS - 15 kVA/15 kW - Single Phase - 9U Rack-mountable - 6 Hour Recharge - 4.61 Minute Stand-by - 230 V AC, 415 V AC Input - 230 V AC, 220 V AC, 240 V AC Output - 1 x Hard Wire 3-wire (1P + N + E) - Sine Wave - Serial Port - USB - LCD Display
