| Battery Information | |
|---|---|
| Battery Chemistry | Lead Acid |
| Battery Characteristics | Maintenance-free, Sealed, Leak-proof |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 4 Hour |
| Controls/Indicators | |
| Status Indicators | Multi-function LCD |
| Environmental Conditions | |
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 3 km |
| Maximum Storage Elevation | 14.76 km |

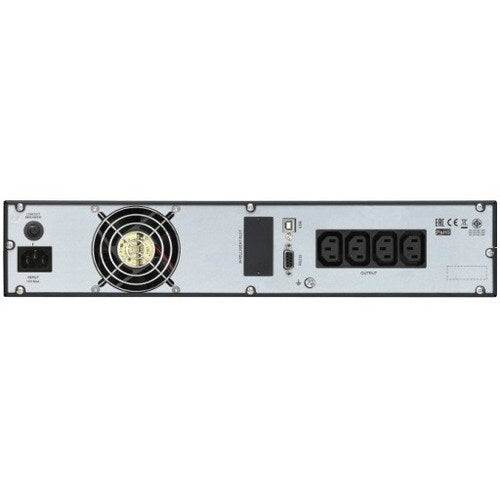

| Interfaces/Ports | |
| Serial Port | Yes |
| EPO Port | No |
| USB (HID Compliant) Port | Yes |
| Management | |
| Alarm | Low Battery |
| Alarm | On Battery |
| Alarm | Overload |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Weight (Approximate) | 18.20 kg |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 86 mm |
| Width | 437 mm |
| Depth | 462 mm |
| Color Family | Black |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 220 V AC |
| Output Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| Surge Energy Rating | 600 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 160 V AC - 280 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 70 Hz |
| Load Capacity (VA) | 2 kVA |
| Load Capacity (Watt) | 1.60 kW |
| Technical Information | |
| Application/Usage | Business |
| Plug/Connector Type | IEC 60320 C14 |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C13 |
| AVR | Yes |
| Transfer Time | 0 ns |
| Receptacle Detail | 4 x IEC 60320 C13 |
