Battery Information | |
---|---|
Battery Chemistry | Lead Acid |
Battery Size | 12V |
Battery Capacity | 9000 mAh |
Number of Batteries | 6 |
Backup/Run Time (Half Load) | 10 Minute |
Backup/Run Time (Full Load) | 4 Minute |
Battery Characteristics | Maintenance-free, Sealed, Leak-proof |
Replaceable Battery | Yes |
DC System Voltage | 12 V DC |
Typical Battery Recharge Time | 4 Hour |
Controls/Indicators | |
Status Indicators | Multi-function LCD |
Environmental Conditions | |
Maximum Operating Temperature | 40°C |
Maximum Operating Elevation | 3 km |
Maximum Storage Elevation | 14.76 km |
Interfaces/Ports | |
Serial Port | Yes |
EPO Port | No |
USB (HID Compliant) Port | Yes |
Management | |
Alarm | Low Battery |
Alarm | Overload |
Alarm | On Battery |
Miscellaneous | |
Environmentally Friendly | Yes |
Physical Characteristics | |
Weight (Approximate) | 26.80 kg |
Form Factor | Tower |
Height | 336 mm |
Width | 190 mm |
Depth | 425 mm |
Power Description | |
Input Voltage | 230 V AC |
Output Voltage | 220 V AC |
Output Voltage | 240 V AC |
Output Voltage | 230 V AC |
Surge Energy Rating | 600 J |
Waveform Type | Sine Wave |
Input Voltage Range | 160 V AC - 280 V AC |
Output Frequency | 60 Hz |
Input Frequency | 70 Hz |
Load Capacity (VA) | 3 kVA |
Technical Information | |
Application/Usage | Business |
Plug/Connector Type | IEC 60320 C14 |
Phase | Single Phase |
Receptacle Type | IEC 60320 C13 |
Receptacle Type | IEC 60320 C19 |
Transfer Time | 0 ns |

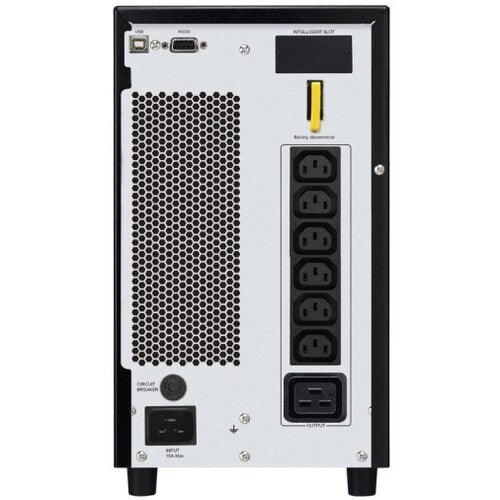

Receptacle Detail | 6 x IEC 60320 C13 |
Receptacle Detail | 1 x IEC 60320 C19 |
