Apc

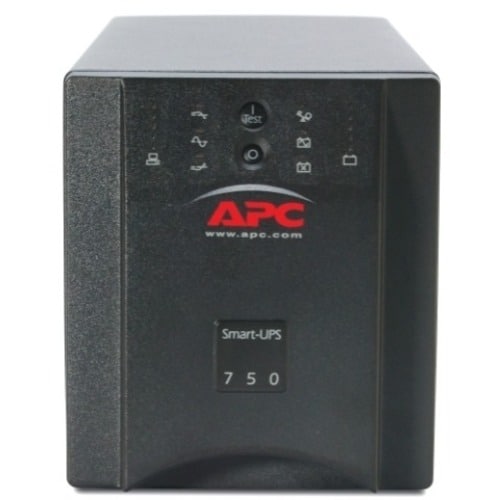

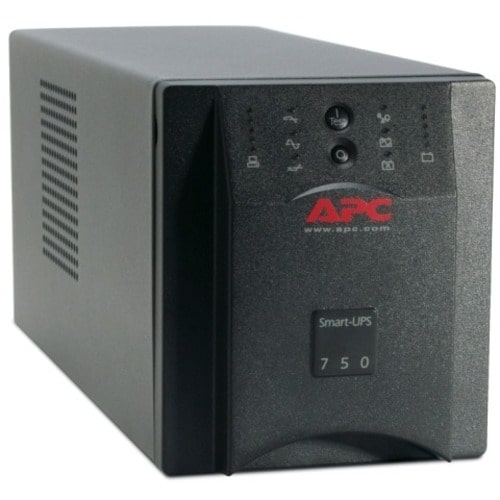

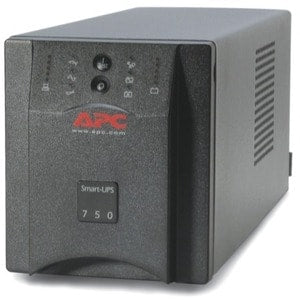

SMART-UPS 750VA USB And SERIAL 230V

SMART-UPS 750VA USB And SERIAL 230V

SKU:SUA750I

$668.59 SGD
Shipping calculated at checkout.

WhatsApp us to confirm stock availability before placing your order.

View full details
Description Specifications
Battery Information
Battery Chemistry Lead Acid
Hot Swappable Yes
Backup/Run Time (Half Load) 16.40 Minute
Backup/Run Time (Full Load) 4.80 Minute
Battery Characteristics Spill-proof, Maintenance-free
Controls/Indicators
Status Indicators
  • LED status display with load and battery bar-graphs and On Line
  • On Battery
  • Replace Battery
  • Overload
Environmental Conditions
Thermal Dissipation 90 BTU/h
Maximum Operating Temperature 45°C

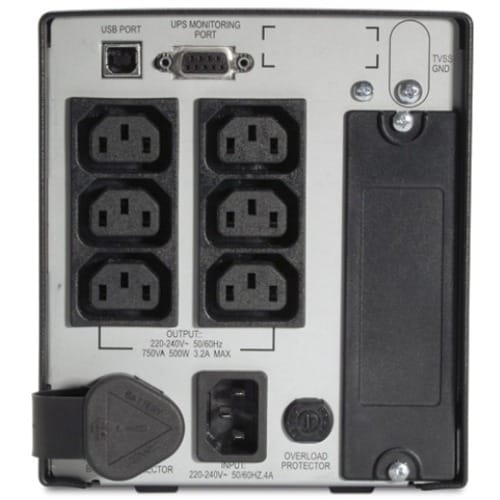

Interfaces/Ports
Serial Port Yes
Total Number of Expansion Slots 1
Management
Battery Management Intelligent Battery Management
Alarm On Battery
Alarm Low Battery
Alarm Configurable Delay
Miscellaneous
Additional Information
  • Automatic restart of loads after UPS shutdown
  • Boost and Trim Automatic Voltage Regulation (AVR)
  • Temperature-compensated battery charging
  • Power conditioning
  • Crest Factor: up to 5 : 1
Package Contents
  • Smart-UPS 750VA
  • CD with software
  • Smart UPS signalling RS-232 cable
  • USB cable
  • User Manual
    		•
    Certifications & Standards
    • UL 1449
    • C-tick
    • CE
    • EN 50091-1
    • EN 50091-2
    • EN 55022 Class A
    • GOST
    • IEC 60950
    • VDE
    Physical Characteristics
    Weight (Approximate) 13.15 kg
    Height 152.4 mm
    Width 127 mm
    Depth 355.6 mm
    Product Color Black
    Color Family Black
    Power Description
    Input Voltage 220 V AC
    Output Voltage 240 V AC
    Surge Energy Rating 340 J
    Waveform Type Sine Wave
    Load Capacity (VA) 750 VA
    Load Capacity (Watt) 500 W
    Technical Information
    Emergency Power OFF Optional
    Plug/Connector Type IEC 320-C14
    Receptacle Type IEC 60320 C13
    Receptacle Detail 6
    Receptacle Detail 2 x IEC 60320 C13
