Cisco

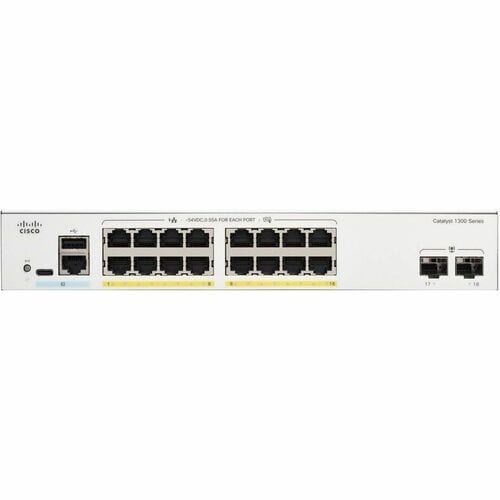

SKU:C1300-16P-2G
Couldn't load pickup availability
Click to WhatsApp us to confirm stock availability
View full details
| I/O Expansions | |
|---|---|
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Shared SFP Slot | Yes |
| Total Number of Expansion Slots | 2.0 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 16 |
| Port/Expansion Slot Details | 16 x Gigabit Ethernet PoE+ |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Expansion Slot |
| Management & Protocols | |
| Manageable | Yes |
| Media & Performance | |
| Network Technology | 1000Base-X |
| Network Technology | 10/100/1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Miscellaneous | |
| Application/Usage | Wireless Access Point |
| Application/Usage | Business |
| Application/Usage | Enterprise |
| Application/Usage | IP Camera |
| Application/Usage | IP Phone |
| Application/Usage | Office |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3 |
| Networking Standards | IEEE 802.1s |
| Networking Standards | IEEE 802.1Q |
| Networking Standards | IEEE 802.1p |
| Networking Standards | IEEE 802.1D |
| Networking Standards | IEEE 802.1ab |
| Networking Standards | IEEE 802.11ac |
| Networking Standards | IEEE 802.3z |
| Networking Standards | IEEE 802.3x |
| Networking Standards | IEEE 802.3u |
| Networking Standards | IEEE 802.3az |
| Networking Standards | IEEE 802.3at |
| Networking Standards | IEEE 802.3af |
| Networking Standards | IEEE 802.3ad |
| Networking Standards | IEEE 802.3ab |
| Networking Standards | IEEE 802.1w |
| Networking Standards | IEEE 802.1x |
| Physical Characteristics | |
| Weight (Approximate) | 2.38 kg |
| Form Factor | Rack-mountable |
| Height | 43.9 mm |
| Width | 268.2 mm |
| Depth | 296.9 mm |
| Compatible Rack Unit | 1U |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Power Source | AC |
| Power Source | Power Supply |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Power Consumption | 154.50 W |
| Number of Power Supplies Installed | 1 |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 120 W |
| Technical Information | |
| Features | Fanless |
