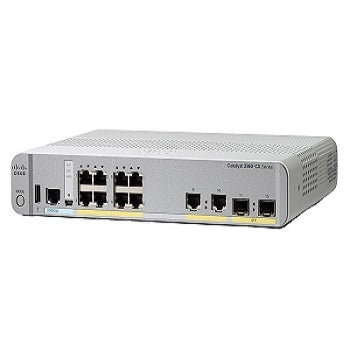

Cisco Catalyst 2960-CX 8 Port Data Lan B - Cisco
I/O Expansions |
Expansion Slot Type |
SFP |
Number of SFP Slots |
2 |
Shared SFP Slot |
No |
Total Number of Expansion Slots |
2.0 |
Interfaces/Ports |
Token Ring Port |
No |
LRE Port |
No |
USB |
No |
Number of Network (RJ-45) Ports |
8 |
Modular |
No |
Management Port |
No |
Uplink Port |
Yes |
Number of PoE+ (RJ-45) Ports |
2 |
Stack Port |
No |
Bypass |
No |
Total Number of Network Ports |
10 |
Port/Expansion Slot Details |
8 x Gigabit Ethernet Network |
Port/Expansion Slot Details |
2 x Gigabit Ethernet Uplink |
Port/Expansion Slot Details |
2 x Gigabit Ethernet Expansion Slot |
Management & Protocols |
Management |
- DHCP
- RMON
- VLAN
- SNMP v1, 2c, 3
- Telnet
- CLI
- QoS
|
Manageable |
Yes |
Media & Performance |
Network Technology |
10/100/1000Base-T |
Network Technology |
1000Base-X |
Ethernet Technology |
Gigabit Ethernet |
Media Type Supported |
Optical Fiber |
Media Type Supported |
Twisted Pair |
Memory |
Flash Memory |
128 MB |
Standard Memory |
512 MB |
Memory Technology |
DRAM |
Miscellaneous |
Certifications & Standards |
IEEE Standards:
- 802.1D Spanning Tree Protocol
- 802.1p CoS Prioritization
- 802.1Q VLAN
- 802.1s
- 802.1w
- 802.1x
- 802.1AB (LLDP)
- 802.3ad
- 802.3af
- 802.3ah(100BASE-X single/multimode fiber only)
- 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
- 802.3 10BASE-T specification
- 802.3u 100BASE-TX specification
- 802.3ab 1000BASE-T specification
- 802.3z 1000BASE-X specification
Safety:
- UL 60950-1
- CAN/CSA 22.2 No. 60950-1
- EN 60950-1
- IEC 60950-1
- CE Marking
- GB 4943
- IEC 60825
Electromagnetic emissions certifications:
- FCC Part 15, CFR 47, Class A, North America
- EN 55022 (CISPR22) and EN 55024 (CISPR24), CE marking, European Union
- AS/NZS, Class A, CISPR22:2004 or EN55022, Australia and New Zealand
- VCCI Class A, V-3/2007.04, Japan
- KCC (Formerly MIC, GB17625.1-1998) Class A, KN24/KN22, Korea
- ANATEL, Brazil
- CCC, China
- GOST, Russia
|
Environmentally Friendly |
Yes |
Network & Communication |
Layer Supported |
2 |
Physical Characteristics |
Weight (Approximate) |
1.72 kg |
Form Factor |
Desktop |
Form Factor |
Rack-mountable |
Form Factor |
Rail-mountable |
Height |
44.5 mm |
Width |
269.2 mm |
Depth |
213.4 mm |
Power Description |
Power Source |
Power Supply |
PoE (RJ-45) Port |
No |
Reliability |
MTBF |
756260 Hour |
