Cisco

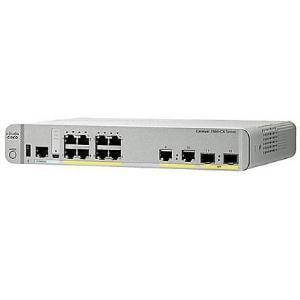

Cisco Catalyst 3560-CX 8 Port PoE IP Bas

Cisco Catalyst 3560-CX 8 Port PoE IP Bas

SKU:WS-C3560CX-8PC-S

$2,010.29 SGD
$1,869.58 SGD $2,010.29 SGD
Sale Pre-order with us via Whatsapp
Shipping calculated at checkout.

WhatsApp us to confirm stock availability before placing your order.

View full details
Description Specifications
I/O Expansions
Expansion Slot Type SFP
Number of SFP Slots 2
Shared SFP Slot No
Interfaces/Ports
Token Ring Port No
LRE Port No
USB No
Number of Network (RJ-45) Ports 2
Modular No
Management Port No
Uplink Port Yes
Number of PoE+ (RJ-45) Ports 8
Stack Port No
Bypass No
Total Number of Network Ports 8
Port/Expansion Slot Details 2 x Gigabit Ethernet Uplink
Port/Expansion Slot Details 2 x Gigabit Ethernet Expansion Slot
Port/Expansion Slot Details 8 x Gigabit Ethernet Network
Management & Protocols
Management
  • DHCP
  • RMON
  • VLAN
  • SNMP v1, 2c, 3
  • Telnet
  • CLI
  • QoS
Manageable Yes
Media & Performance
Network Technology 10/100/1000Base-T
Network Technology 1000Base-X
Ethernet Technology Gigabit Ethernet
Media Type Supported Optical Fiber
Media Type Supported Twisted Pair
Memory
Flash Memory 128 MB
Standard Memory 512 MB
Memory Technology DRAM
Miscellaneous
Certifications & Standards IEEE Standards:
  • 802.1D Spanning Tree Protocol
  • 802.1p CoS Prioritization
  • 802.1Q VLAN
  • 802.1s
  • 802.1w
  • 802.1x
  • 802.1AB (LLDP)
  • 802.3ad
  • 802.3af
  • 802.3ah(100BASE-X single/multimode fiber only)
  • 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
  • 802.3 10BASE-T specification
  • 802.3u 100BASE-TX specification
  • 802.3ab 1000BASE-T specification
  • 802.3z 1000BASE-X specification
Safety:
  • UL 60950-1
  • CAN/CSA 22.2 No. 60950-1
  • EN 60950-1
  • IEC 60950-1
  • CE Marking
  • GB 4943
  • IEC 60825
Electromagnetic emissions certifications:
  • FCC Part 15, CFR 47, Class A, North America
  • EN 55022 (CISPR22) and EN 55024 (CISPR24), CE marking, European Union
  • AS/NZS, Class A, CISPR22:2004 or EN55022, Australia and New Zealand
  • VCCI Class A, V-3/2007.04, Japan
  • KCC (Formerly MIC, GB17625.1-1998) Class A, KN24/KN22, Korea
  • ANATEL, Brazil
  • CCC, China
  • GOST, Russia
Environmentally Friendly Yes
Network & Communication
Layer Supported 3
Physical Characteristics
Weight (Approximate) 2.27 kg
Form Factor Rack-mountable
Form Factor Desktop
Form Factor Rail-mountable
Height 44.5 mm
Width 269.2 mm
Depth 238.8 mm
Power Description
Power Source Power Supply
PoE (RJ-45) Port Yes
Reliability
MTBF 569530 Hour
