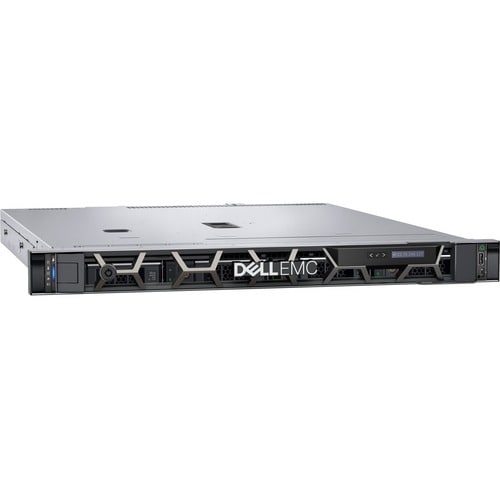

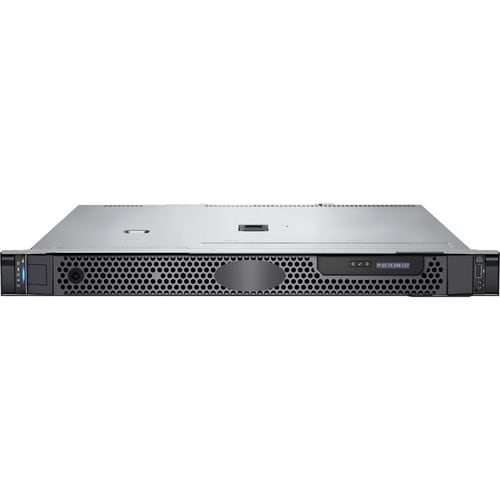

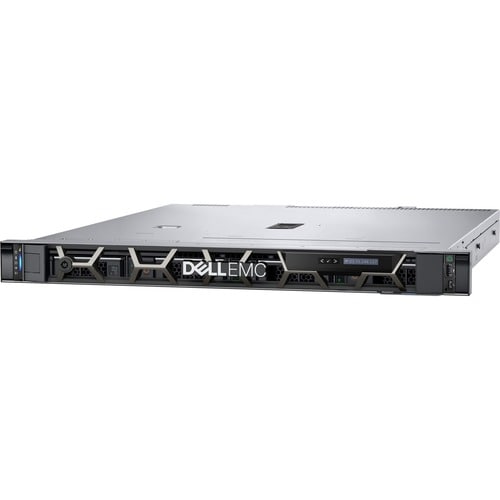

SI CD7303-R250 Server - Dell
Chipset |
Chipset Manufacturer |
Intel |
Controllers |
Controller Type |
Serial ATA |
RAID Supported |
Yes |
Controller Model |
PERC H345 |
I/O Expansions |
Number of Total Expansion Bays |
4 |
"Number of 3.5"" Bays" |
4 |
Total Number of Expansion Slots |
2.0 |
Hot Swappable Bays |
Yes |
Number of LFF Bays |
4 |
PCI Express Details |
2 PCIe slots: 1 x8 Gen4 (x16 connector) low profile, half length, 1 x8 Gen4 (x8 connector) low profile, half length |
Interfaces/Ports |
VGA |
Yes |
Number of Network (RJ-45) Ports |
2 |
Network (RJ-45) |
Yes |
Remote Management |
Yes |
Number of USB 2.0 Ports |
2 |
Number of VGA Ports |
1 |
Remote Management Controller |
iDRAC9 Express |
Memory |
Maximum Memory Supported |
128 GB |
Signal Processing |
Unregistered (Unbuffered) |
Standard Memory |
16 GB |
Memory Technology |
DDR4 SDRAM |
Number of Occupied Memory Slots |
1 |
Total Number of Memory Slots |
4.0 |
Miscellaneous |
Security Features |
- Cryptographically Signed Firmware
- Secure Boot
- Secure Erase
- Silicon Root of Trust
- System Lockdown (requires iDRAC9 Enterprise or Datacenter)
- Trusted Platform Module 2.0 V3
|
Network & Communication |
Ethernet Technology |
Gigabit Ethernet |
Operating System |
Operating System Supported |
Windows Server |
Operating System Supported |
Ubuntu Server |
Operating System Supported |
SuSE Linux Enterprise Server |
Operating System Supported |
Red Hat Enterprise Linux |
Operating System Supported |
Hyper-V |
Physical Characteristics |
Form Factor |
Rack-mountable |
Rack Height |
1U |
Height |
42.8 mm |
Width |
482.6 mm |
Depth |
585 mm |
Power Description |
Input Voltage |
120 V AC |
Input Voltage |
230 V AC |
Power Source |
Power Supply |
Maximum Power Supply Wattage |
450 W |
Processor |
Processor Type |
Xeon |
Processor Model |
E-2314 |
Processor Manufacturer |
Intel |
Number of Processors Supported |
1 |
Number of Processors Installed |
1 |
Storage |
Hard Drive Interface |
Serial ATA |
Number of Hard Drives |
2 |
Total Hard Drive Capacity |
4 TB |
Hard Drive Configuration |
2 x 2TB |
Warranty |
Additional Warranty Information |
Channel ProSupport and Next Business Day Onsite Service, 36 Month(s) |
