Eaton
SKU:9103-63152
Couldn't load pickup availability
Click to WhatsApp us to confirm stock availability
View full details

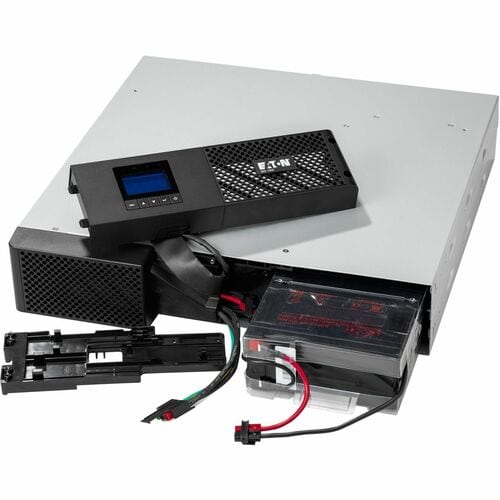

| Battery Information | |
|---|---|
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Number of Batteries | 4 |
| Backup/Run Time (Half Load) | 16 Minute |
| Backup/Run Time (Full Load) | 5 Minute |
| Battery Characteristics | Sealed |
| Display & Graphics | |

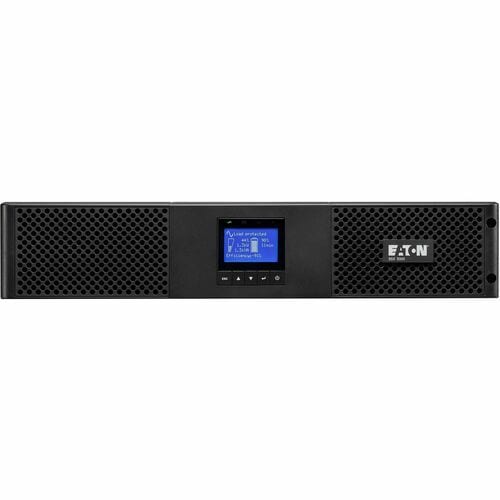

| Display | LCD |
| Interfaces/Ports | |
| Network (RJ-45) | No |
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Expansion Slot Detail | 1 x Slot for Optional Communication Card |
| Management | |
| Network Management | Dry Contact |
| Network Management | DB-9 RS-232 |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Physical Characteristics | |
| Weight (Approximate) | 18.40 kg |

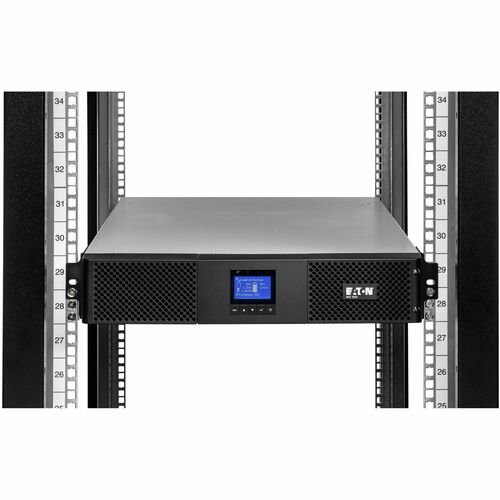

| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 86.5 mm |
| Width | 438 mm |
| Depth | 438 mm |
| Product Color | Black |
| Color Family | Black |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Output Voltage | 220 V AC |
| Output Voltage | 230 V AC |
| Output Voltage | 200 V AC |
| Output Voltage | 240 V AC |
| Output Voltage | 208 V AC |
| Waveform Type | Sine Wave |
| Input Voltage Range | 120 V AC - 276 V AC |
| Input Frequency | 40 Hz |
| Input Frequency | 70 Hz |
| Input Frequency | 60 Hz |
| Input Frequency | 50 Hz |
| Load Capacity (VA) | 1.50 kVA |
| Output Power Factor | 0.9 |
| Technical Information | |

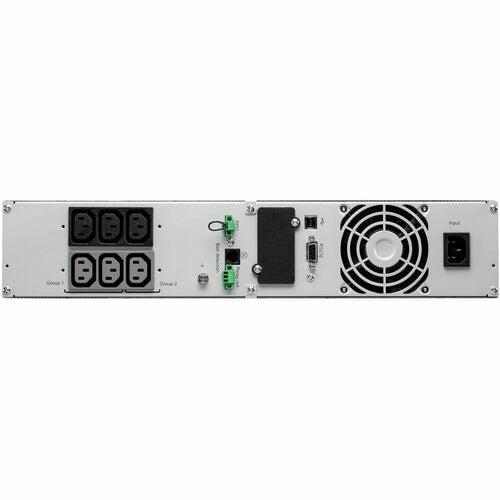

| Plug/Connector Type | IEC 60320 C14 |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 6 x IEC 60320 C13 |
