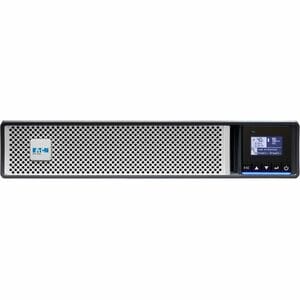

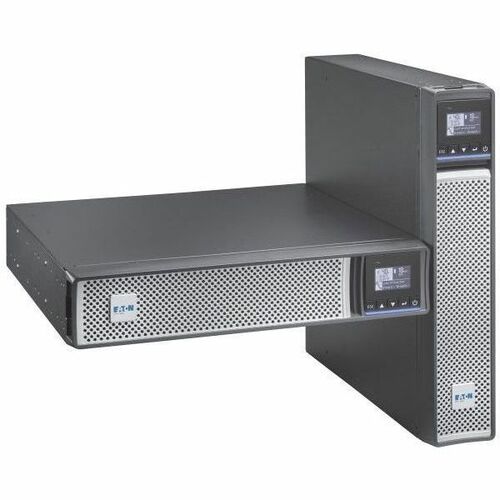

Eaton 5PX 2200i RT2U G2

Eaton 5PX 2200i RT2U G2

SKU:9210-73043

$1,526.00 SGD
$2,874.96 SGD $1,526.00 SGD
Sale Pre-order with us via Whatsapp
Shipping calculated at checkout.

Click to WhatsApp us to confirm stock availability

View full details
Description Specifications
Eaton 5PX 2200i RT2U G2 - Eaton
Battery Information
Battery Chemistry Lead Acid
Battery Size 12V
Battery Capacity 7000 mAh
Number of Batteries 6
Backup/Run Time (Half Load) 10 Minute
Backup/Run Time (Full Load) 3 Minute
Battery Characteristics Maintenance-free
Replaceable Battery Yes
DC System Voltage 12 V DC
Controls/Indicators
Status Indicators

Multilingual graphical LCD display
Display & Graphics
Display LCD
Interfaces/Ports
USB Yes
Serial Port Yes
USB (HID Compliant) Port Yes
Management
Network Management Dry Contact
Network Management DB-9 RS-232
Miscellaneous
Package Contents
  • 5PX2200IRT2UG2 2200VA Rack/Tower UPS
  • Input Cable
  • Rack-mounting Kit
  • 2 x Supports for Tower Mounting
  • Cable Locking System
  • USB Cable
  • Serial Cable
  • 2 x IEC-IEC Cables
  • Quickstart Guide
  • Safety Instructions
    		•
    Environmentally Friendly Yes
    Energy Star Yes
    Environmental Compliance Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
    Environmental Compliance Restriction of Hazardous Substances (RoHS)
    Physical Characteristics
    Weight (Approximate) 28.20 kg
    Form Factor Rack/Tower
    Rack Height 2U
    Height 85.5 mm
    Width 438 mm
    Product Color Black
    Product Color Silver
    Color Family Dual Colour
    Power Description
    Input Voltage 230 V AC
    Output Voltage 200 V AC
    Output Voltage 208 V AC
    Output Voltage 220 V AC
    Output Voltage 230 V AC
    Output Voltage 240 V AC
    Waveform Type Sine Wave
    Input Voltage Range 150 V AC - 294 V AC
    Input Voltage Range 160 V AC - 294 V AC
    Input Frequency 70 Hz
    Load Capacity (VA) 2.20 kVA
    Output Power Factor 1
    Technical Information
    Application/Usage IT Equipment

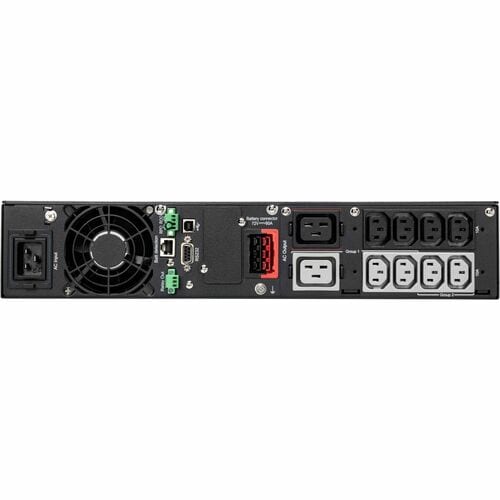

    Plug/Connector Type IEC 60320 C20 (16A)
    Cord Length 1.80 m
    Phase Single Phase
    Receptacle Type IEC 60320 C19 (16A)
    Receptacle Type IEC 60320 C13 (10A)
    Receptacle Detail 8 x IEC 60320 C13 (10A)
    Receptacle Detail 2 x IEC 60320 C19 (16A)
    Warranty
    Additional Warranty Information

    2 year on battery
