Eaton
SKU:9210-83121
Couldn't load pickup availability
Click to WhatsApp us to confirm stock availability
View full details
| Battery Information | |
|---|---|
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Number of Batteries | 6 |
| Backup/Run Time (Half Load) | 9 Minute |
| Backup/Run Time (Full Load) | 3 Minute |
| Battery Characteristics | Maintenance-free |
| Replaceable Battery | Yes |
| Controls/Indicators | |

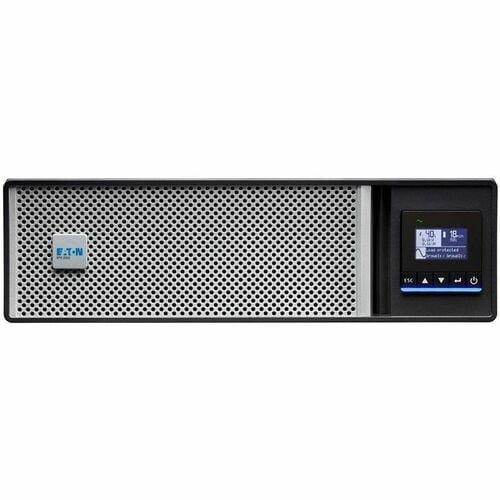

| Status Indicators | Multilingual graphical LCD display |
| Display & Graphics | |
| Display | LCD |

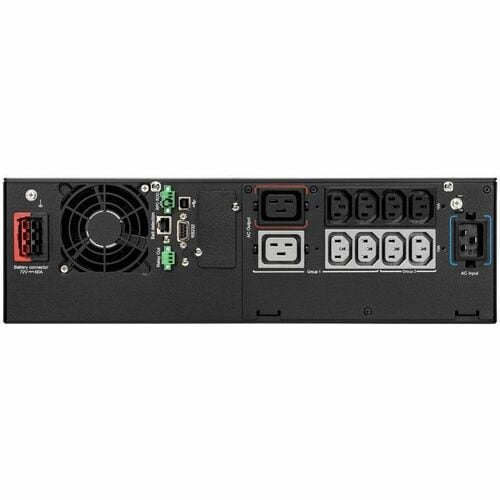

| Interfaces/Ports | |
| USB | Yes |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Management | |
| Network Management | DB-9 RS-232 |
| Network Management | Dry Contact |
| Network Management | INDGW-M2 Card |
| Network Management | Network-M3 Card |
| Network Management | Relay-MS Card |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 31.10 kg |

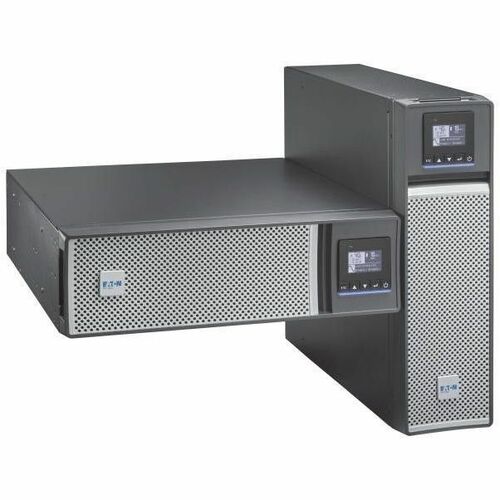

| Form Factor | Rack/Tower |
| Rack Height | 3U |
| Height | 129 mm |
| Width | 438 mm |
| Product Color | Black |
| Product Color | Silver |
| Color Family | Dual Colour |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 220 V AC |
| Output Voltage | 240 V AC |
| Output Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Output Voltage | 200 V AC |
| Waveform Type | Sine Wave |
| Input Voltage Range | 160 V AC - 294 V AC |
| Input Voltage Range | 150 V AC - 294 V AC |
| Input Frequency | 70 Hz |
| Load Capacity (VA) | 3 kVA |
| Output Power Factor | 1 |
| Technical Information | |
| Application/Usage | Server |
| Application/Usage | Storage System |
| Application/Usage | VoIP |
| Application/Usage | IT Equipment |
| Application/Usage | Network Equipment |
| Plug/Connector Type | IEC 60320 C20 (16A) |
| Cord Length | 1.80 m |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C19 (16A) |
| Receptacle Type | IEC 60320 C13 (10A) |
| Receptacle Detail | 2 x IEC 60320 C19 (16A) |
| Receptacle Detail | 8 x IEC 60320 C13 (10A) |
| Warranty | |
| Additional Warranty Information | 2 year on battery |
