Chipset | |
---|---|
Chipset Manufacturer | Intel |
Chipset Model | Q670 |
Display & Graphics | |
Graphics Controller Manufacturer | Intel |
Graphics Controller Model | UHD Graphics 770 |
Graphics Memory Technology | DDR5 SDRAM |
Graphics Memory Accessibility | Shared |

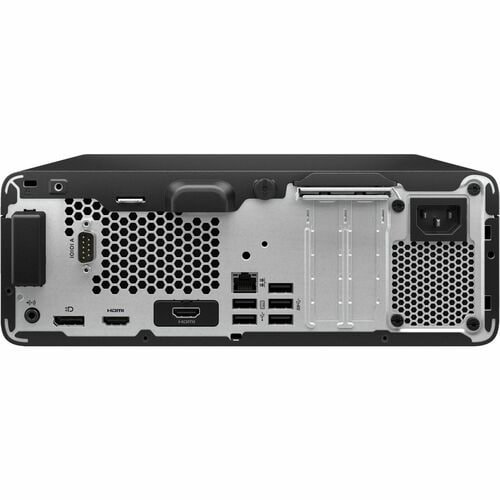

Interfaces/Ports | |
Total Number of USB Ports | 9 |
Number Of Ethernet Ports | 1 |
USB Type-C Detail | 1 x Type-C® SuperSpeed USB 10Gbps signaling rate port |
HDMI (Rear) | Yes |
Number of USB 2.0 Ports (Rear) | 2 |
USB Type-C (Front) | Yes |
Number of DisplayPort Outputs (Rear) | 1 |
DisplayPort (Rear) | Yes |
Number of USB 3.2 Gen 1 Ports | 3 |
Number of USB 3.2 Gen 2 Ports | 3 |
Optional Ports |
Details regarding optional ports aggregated from the information available for this product's family/series. Flex Port, choice of:
|
Memory | |
Maximum Memory Supported | 64 GB |
Standard Memory | 8 GB |
Memory Technology | DDR5 SDRAM |
Number of Occupied Memory Slots | 1 |
Memory Configuration | 1 x 8GB |
Miscellaneous | |
Package Contents |
|
Features | Dust Filter |
Features | Tool-less Access |
Features | Low Halogen |
Features | Security Slot |
Environmentally Friendly | Yes |
Environmental Certification | TCO Certified 9.0 |
Energy Star | Yes |
TCO Certified | Yes |
Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Network & Communication | |
Ethernet Technology | Gigabit Ethernet |
LAN Manufacturer | Intel |
LAN Model | I219-LM |
Operating System | |
Operating System | Windows 11 Pro |
Operating System Platform | Windows |
Physical Characteristics | |
Weight (Approximate) | 4.20 kg |
Form Factor | Small Form Factor |
Height | 308 mm |
Width | 270 mm |
Depth | 95 mm |
Power Description | |
Input Voltage | 230 V AC |
Input Voltage | 120 V AC |
Frequency | 50 Hz |
Frequency | 60 Hz |
Maximum Power Supply Wattage | 180 W |
Processor | |
Processor Speed | 2.60 GHz |
Processor Type | Core i5 |
Processor Model | i5-14500 |
Processor Core | Tetradeca-core (14 Core) |
Processor Manufacturer | Intel |
Maximum Turbo Speed | 5 GHz |
Processor Generation | 14th Gen |
Processor Threads | 20 |
Storage | |
Drive Type | SSD |
Solid State Drive Interface | PCI Express NVMe |
Total Solid State Drive Capacity | 512 GB |
SSD Form Factor | M.2 |
Warranty | |
Additional Warranty Information | 1 year (1/1/1) limited warranty includes 1 year of parts, labor and on-site repair. |
