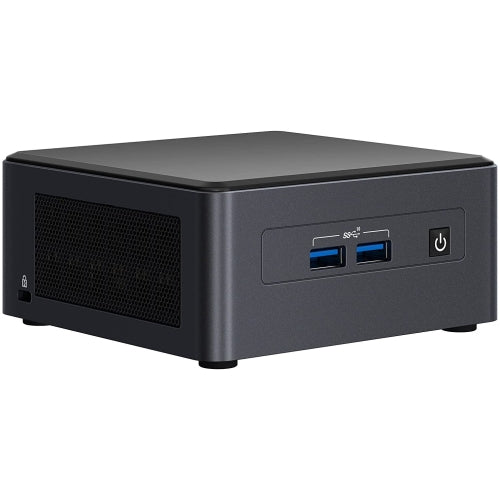

Tiger Canyon NUC11TNHv5 Barebone L6 No - Intel
Chipset |
Chipset Manufacturer |
Intel |
Controllers |
Controller Type |
Serial ATA |
Display & Graphics |
Graphics Controller Manufacturer |
Intel |
Graphics Controller Model |
Iris Xe Graphics |
Graphics Memory Technology |
DDR4 SDRAM |
Graphics Memory Accessibility |
Shared |
Interfaces/Ports |
Number of SATA Interfaces |
1 |
HDMI |
Yes |
Total Number of USB Ports |
9 |
Number of Onboard USB 2.0 Ports |
2 |
Number of Thunderbolt 3 Ports |
1 |
USB Type-C Detail |
2x USB 4 (type C) |
USB Type-C (Rear) |
Yes |
Memory |
Maximum Memory Supported |
64 GB |
Memory Technology |
DDR4 SDRAM |
Memory Standard |
DDR4-3200/PC4-25600 |
Number of Total Memory Slots |
2 |
Intel Optane Memory Ready |
No |
Network & Communication |
Bluetooth |
Yes |
Wireless LAN |
Yes |
Ethernet Technology |
2.5 Gigabit Ethernet |
Operating System |
Operating System Supported |
Windows 10 x64 |
Operating System Supported |
Red Hat Linux |
Operating System Supported |
Windows 10 IoT Enterprise |
Operating System Supported |
Ubuntu 20.04 LTS |
Physical Characteristics |
Height |
54 mm |
Width |
112 mm |
Depth |
117 mm |
Processor |
Processor Type |
Core i5 |
Processor Socket |
Socket BGA-1449 |
Processor Model |
i5-1145G7 |
Processor Core |
Quad-core (4 Core) |
64-bit Processing |
Yes |
Processor Manufacturer |
Intel |
Number of Processors Supported |
1 |
Maximum Turbo Speed |
4.40 GHz |
Processor Generation |
11th Gen |
