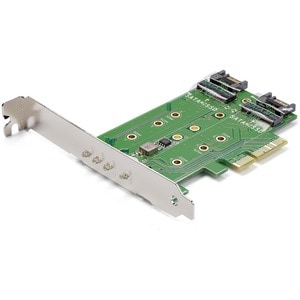

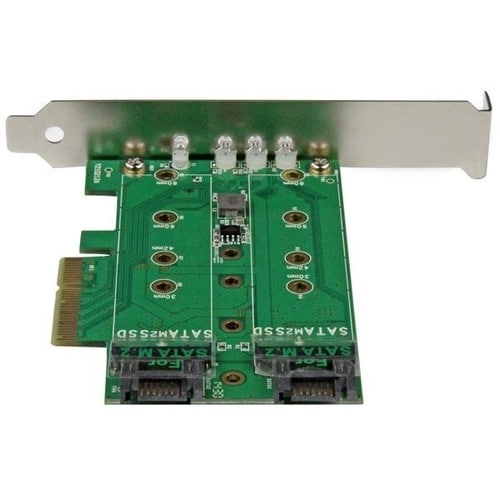

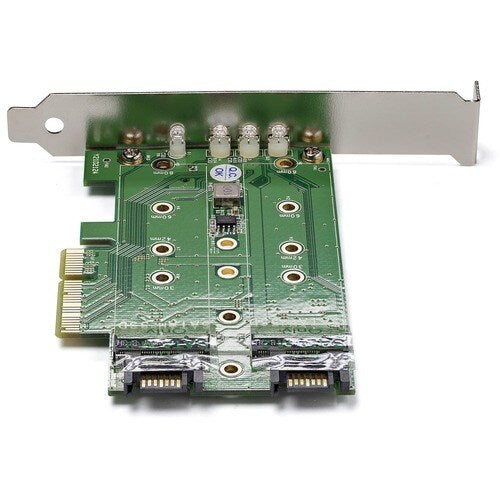

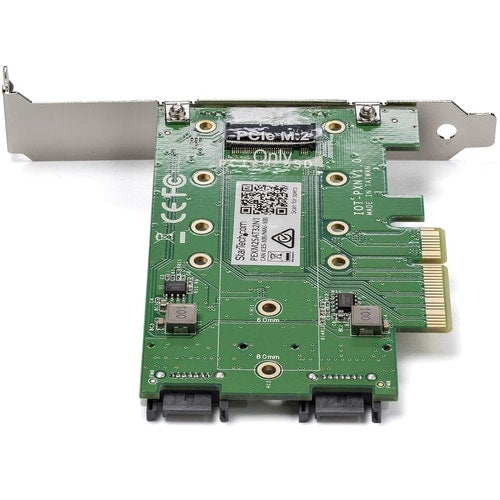

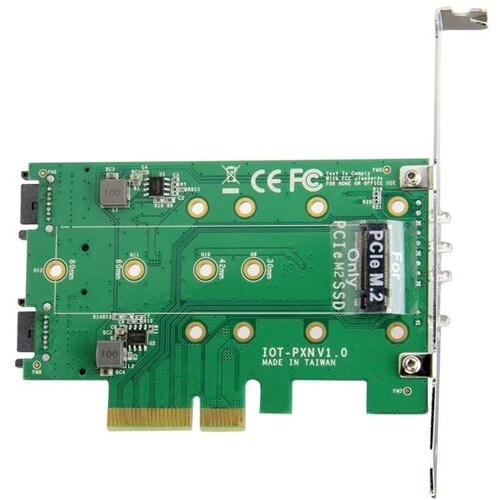

M.2 SSD CARD 1X PCIE (NVME) 2X SATA M.2 - Startech.Com
|
|
| Miscellaneous |
|---|
| Additional Information |
- Bus Type PCI Express
- Card Type Standard Profile (LP bracket incl.)
- Industry Standards Serial ATA 3.0 specification - SATA I/II/III (1.5/3/6Gbps)
- PCI Express 3.0
- Interface M.2 SATA (NGFF)
- SATA
- M.2 PCIe (NVMe)
- Port Style Integrated on Card
- Ports 3
- ATAPI Support Yes
- Bootable Yes
- MTBF 50,000 Hours
- Port Multiplier No
- RAID No
- Type and Rate SATA III (6 Gbps)
- Connector Type(s) 1 - PCI Express x4 Male
- Internal Ports:
- 3 - M.2 (NGFF; B-Key) Receptacle
- 2 - SATA (7 pin; Data) Plug
- Humidity 20%~80% RH (Non-condensing)
- Operating Temperature 5°C to 50°C (41°F to 122°F)
- Storage Temperature -25°C to 70°C (-13°F to 158°F)
|
| Certifications & Standards |
|
| Country of Origin |
Taiwan |
| Environmentally Friendly |
Yes |
| TAA Compliant |
Yes |
|
|
| Physical Characteristics |
|---|
| Weight (Approximate) |
65.2 g |
| Length |
119.4 mm |
| Height |
119.4 mm |
| Width |
20.3 mm |
| Product Color |
Black |
| Product Material |
Steel |
