Vertiv
SKU:GXT5-10KIRT5UXLN
Couldn't load pickup availability
Click to WhatsApp us to confirm stock availability
View full details
| Battery Information | |
|---|---|
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Number of Batteries | 16 |

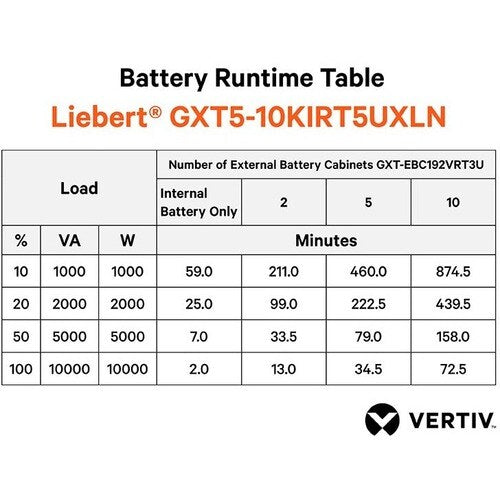

| Backup/Run Time (Half Load) | 7 Minute |
| Backup/Run Time (Full Load) | 2 Minute |
| Battery Characteristics | Valve-regulated/Non-spillable |
| Replaceable Battery | Yes |
| Controls/Indicators | |
| Status Indicators | LED/Full Color Graphic LCD |
| Environmental Conditions | |
| Sound Emission | 55 dB |
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 3 km |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Modem (RJ-11) | No |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Management | |
| Bypass Switch | Internal |
| Bypass Switch | Automatic & Manual |
| Emergency Power OFF | Yes |
| Network Management | SNMP/Webcard |
| Miscellaneous | |
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| TAA Compliant | No |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Physical Characteristics | |
| Weight (Approximate) | 74.50 kg |
| Form Factor | Rack/Tower |
| Rack Height | 5U |
| Height | 217 mm |
| Width | 430 mm |
| Depth | 630 mm |
| Product Color | Black |
| Color Family | Black |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Output Voltage | 240 V AC |
| Output Voltage | 220 V AC |
| Output Voltage | 200 V AC |
| Waveform Type | Pure Sine Wave |
| Input Voltage Range | 115 V AC - 288 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 70 Hz |
| Load Capacity (VA) | 10 kVA |
| Technical Information | |
| Application/Usage | Healthcare |
| Application/Usage | Business |
| Application/Usage | Banking |
| Application/Usage | IT Equipment |
| Application/Usage | Telecommunication |
| Application/Usage | Retail & Wholesale |
| Application/Usage | Network |
| Application/Usage | Mission Critical Equipment |
| Application/Usage | Finance |
| Application/Usage | Edge Computing |
| Plug/Connector Type | Hardwired |
| Phase | Single Phase |
| Receptacle Type | IEC 320 EN 60320 C13 |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Type | Terminal Block |
| EMI/RFI Noise Filter | Yes |
| Transfer Time | 0 ns |
| Receptacle Detail | 4 x IEC 320 EN 60320 C13 |
| Receptacle Detail | 4 x IEC 60320 C19 |
