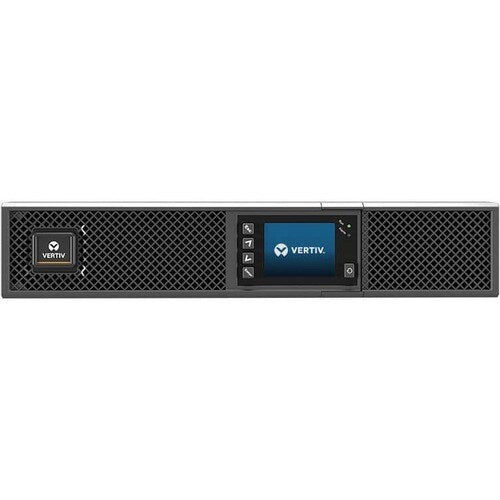

Vertiv
SKU:GXT5-3000IRT2UXL
Couldn't load pickup availability
WhatsApp us to confirm stock availability before placing your order.
View full details
| Battery Information | |
|---|---|
| Battery Life | 5 Year |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Hot Pluggable | Yes |
| Number of Batteries | 6 |
| Backup/Run Time (Half Load) | 10.80 Minute |
| Backup/Run Time (Full Load) | 3.30 Minute |
| Battery Characteristics | Valve-regulated, Non-spillable |
| Replaceable Battery | Yes |
| DC System Voltage | 72 V DC |
| Typical Battery Recharge Time | 3 Hour |
| Controls/Indicators | |
| Status Indicators |
Colored Graphic LCD Display:
|
| Environmental Conditions | |
| Sound Emission | 48 dB |
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 3 km |
| Interfaces/Ports | |
| VGA | No |
| Network (RJ-45) | Yes |
| Modem (RJ-11) | No |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring |
| Miscellaneous | |
| TAA Compliant | No |
| Energy Star | Yes |
| Physical Characteristics | |
| Weight (Approximate) | 28.50 kg |
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Height | 85 mm |
| Width | 430 mm |
| Depth | 540 mm |
| Product Color | Black |
| Color Family | Black |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| Output Voltage | 230 V AC |
| Output Voltage | 220 V AC |
| Output Voltage | 208 V AC |
| Output Voltage | 200 V AC |
| Waveform Type | Pure Sine Wave |
| Input Voltage Range | 115 V AC - 288 V AC |
| Input Frequency | 70 Hz |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 3 kW |
| Technical Information | |
| Application/Usage | Network Closet |
| Application/Usage | Network Workstation |
| Application/Usage | Server |
| Application/Usage | VoIP |
| Application/Usage | Edge Computing |
| Application/Usage | Large Network Peripheral |
| Application/Usage | Mission Critical Equipment |
| Protection Type | Output Over Voltage |
| Protection Type | Electric Shock |
| Protection Type | Over Charge |
| Protection Type | Over Current |
| Protection Type | Over Loading |
| Protection Type | Over Power |
| Protection Type | Over Temperature |
| Protection Type | Over Voltage |
| Protection Type | Power Failure |
| Protection Type | Quad |
| Protection Type | Harmonics |
| Protection Type | High/Low Voltage |
| Protection Type | Inrush Current |
| Protection Type | Lightning |
| Protection Type | Line Noise |
| Protection Type | Low Battery |
| Protection Type | No Load |
| Protection Type | Noise |
| Protection Type | Output Over Current |
| Protection Type | Surge |
| Protection Type | Temperature |
| Protection Type | Thermal Overload |
| Protection Type | Electronic Current Limit |
| Protection Type | EMI |
| Protection Type | EMI / RFI |
| Protection Type | Excessive Low Battery |
| Protection Type | Fuse |
| Protection Type | RFI |
| Protection Type | Sag |
| Protection Type | Short Circuit |
| Protection Type | Soft Start |
| Protection Type | Spike |
| Protection Type | Transient |
| Protection Type | Under Current |
| Protection Type | Under Voltage |
| Protection Type | Output Short Circuit |
| Protection Type | Discharge |
| Protection Type | Deep Discharge |
| Protection Type | Dataline Surge |
| Protection Type | Brownout |
| Protection Type | Black Out |
| Protection Type | AC Surge |
| Protection Type | AC Noise |
| Cord Length | 3.05 m |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Type | IEC 60320 C13 |
| EMI/RFI Noise Filter | Yes |
| Transfer Time | 0 ns |
| Receptacle Detail | 6 x IEC 60320 C13 |
| Receptacle Detail | 1 x IEC 60320 C19 |
