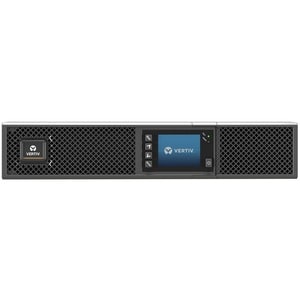

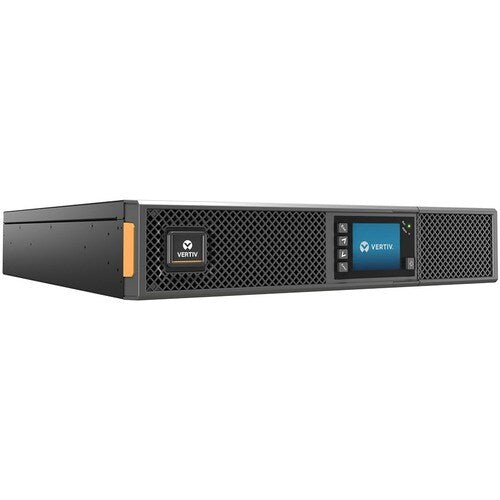

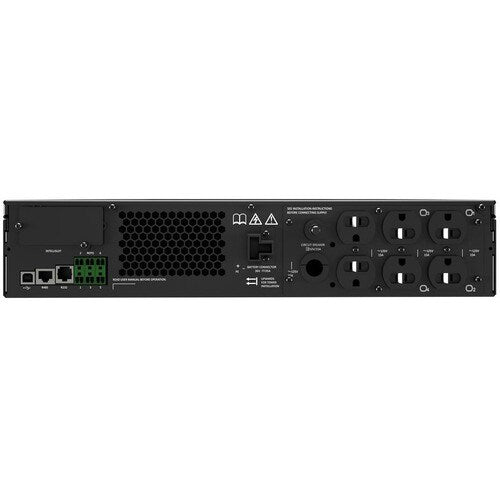

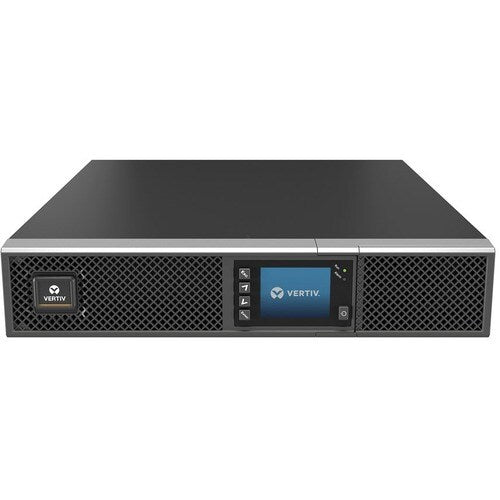

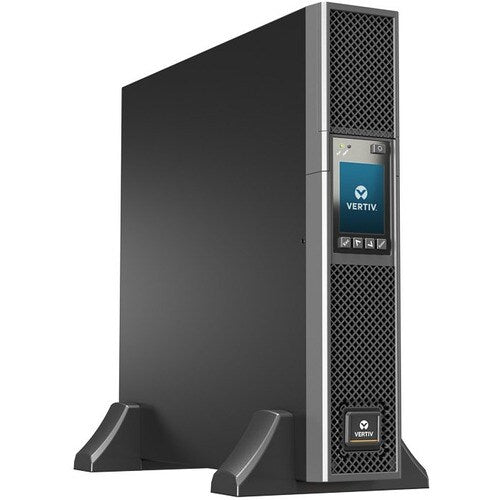

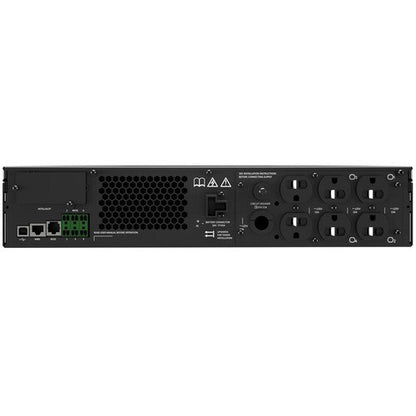

VERTIV LIEBERT GXT5 ON-LINE 500VA/500W 1

VERTIV LIEBERT GXT5 ON-LINE 500VA/500W 1

SKU:GXT5-500LVRT2UXL

$1,239.98 SGD
$1,857.82 SGD $1,239.98 SGD
Sale Pre-order with us via Whatsapp
Shipping calculated at checkout.

Click to WhatsApp us to confirm stock availability

View full details
Description Specifications
VERTIV LIEBERT GXT5 ON-LINE 500VA/500W 1 - Vertiv
Battery Information
Battery Life 5 Year
Battery Chemistry Lead Acid
Hot Swappable Yes
Battery Size 12V
Hot Pluggable Yes
Number of Batteries 3
Backup/Run Time (Half Load) 36.50 Minute
Backup/Run Time (Full Load) 15 Minute
Battery Characteristics Valve-regulated, Non-spillable
Typical Battery Recharge Time 3 Hour
Number of External Battery Cabinets 1
Backup/Run Time With External Battery Cabinet (Full Load) 1.08 Hour
Backup/Run Time With External Battery Cabinet (Half Load) 2.20 Hour
Controls/Indicators
Status Indicators Color LCD
Environmental Conditions
Maximum Operating Temperature 40°C
Maximum Operating Elevation 3 km
Maximum Storage Elevation 15 km
Environmental Sensors Humidity Sensor
Environmental Sensors Leak Detection Sensor
Environmental Sensors Temperature Sensor
Interfaces/Ports
VGA No
Modem (RJ-11) No
Serial Port Yes
EPO Port Yes
USB (HID Compliant) Port Yes
Miscellaneous
Additional Information
  • Operating Temperature,°F (°C):+32 to +104 (0 to 40)
  • Storage Temperature,°F (°C ):-4 to +140 (-20 to 60) contain batteries will be from -15 to 40°C.
  • Relative Humidity:0% to 95%, non-condensing
  • Audible Noise:
    • <46dBA max @ 3 ft. (1m) front and sides
    • <43dBA, at 3 ft. (1m) rear
Assembly Required No
TAA Compliant No
Energy Star Yes
Physical Characteristics
Weight (Approximate) 16.78 kg
Form Factor Rack/Tower
Rack Height 2U
Height 86.4 mm
Width 429.3 mm
Depth 398.8 mm
Product Color Black
Color Family Black
Power Description
Circuit Breaker Yes
Output Voltage 120 V AC
Input Current 6 A
Waveform Type Sine Wave
Output Current 4.20 A
Input Voltage Range 60 V AC - 150 V AC
Input Frequency 70 Hz
Load Capacity (VA) 500 VA
User Selectable Output Typical 120V User Selectable Output: 110/115/120/125VAC (user-configurable); ±3%
Utility (AC) Mode Overload
  • >200% for 250ms
  • 150- 200% for 50 seconds
  • 125- 150% for 60 seconds
  • 105-125% for 60 seconds
Technical Information
Application/Usage IT Equipment
Application/Usage Mission Critical Equipment
Emergency Power OFF Yes
Cord Length 3.05 m
Phase Single Phase
Receptacle Type NEMA 5-15R
Transfer Time 0 ns
Receptacle Detail 6 x NEMA 5-15R
