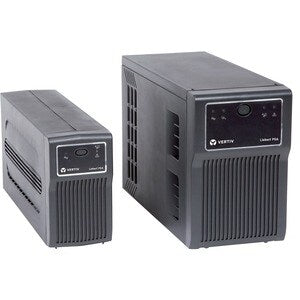

PSA - 1500VA MINI TOWER UPS - Vertiv
|
|
| Battery Information |
|---|
| Battery Life |
5 Year |
| Battery Chemistry |
Lead Acid |
| Battery Capacity |
9000 mAh |
| Number of Batteries |
4 |
| Backup/Run Time (Half Load) |
12 Minute |
| Backup/Run Time (Full Load) |
3 Minute |
| Battery Characteristics |
Valve-regulated |
| DC System Voltage |
12 V DC |
| Typical Battery Recharge Time |
6 Hour |
|
|
| Controls/Indicators |
|---|
| Status Indicators |
LED |
|
|
| Environmental Conditions |
|---|
| Maximum Operating Temperature |
40°C |
| Maximum Operating Elevation |
3 km |
|
|
| Interfaces/Ports |
|---|
| USB |
Yes |
| Network (RJ-45) |
Yes |
| Serial Port |
Yes |
| EPO Port |
No |
|
|
| Management |
|---|
| Network Management |
SNMP Manageable |
| Alarm |
Yes |
|
|
| Miscellaneous |
|---|
| Additional Information |
- Output frequency: 50/60Hz
- Serial ports quantity: 1
- Battery voltage: 12 V
- Battery capacity: 9 Ahr
- Power supply input frequency: 50/60Hz
- Operating altitude: 0 - 3000 m
- Storage relative humidity (H-H): 0 - 90%, non condensing
- USB 2.0 ports quantity: 1
- Input operation voltage (max): 287 V
- Input operation voltage (min): 160 V
- Number of batteries supported: 2
- Storage temperature (T-T): -15 - 40 °C
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 90%
- Non-operating relative humidity (non-condensing): 0-90%
- International Protection (IP) code: IP20
- Power factor: 0.6
- Cooling type: Air cooling
- RS-232 ports: No
- Audible alarm(s): Yes
- Output power factor: 0.6
|
| Package Contents |
PSA 1500VA Tower UPS
User Manual on CD
Software CD
USB cable
Safety Instruction Sheet
Environment protection sheet
3 x IEC output cables for 1000/1500 VA
|
| Software Included |
Shutdown Software |
| Certifications & Standards |
- Safety: IEC/EN/AS 62040-1-1
- Transportation: ISTA Procedure 1A Certification
- CE
|
| Environmentally Friendly |
Yes |
| Energy Star |
No |
| Environmental Compliance |
Restriction of Hazardous Substances (RoHS) |
|
|
| Physical Characteristics |
|---|
| Weight (Approximate) |
12.60 kg |
| Form Factor |
Tower |
| Height |
234 mm |
| Width |
147 mm |
| Depth |
360 mm |
| Product Color |
Black |
| Color Family |
Black |
|
|
| Power Description |
|---|
| Circuit Breaker |
Yes |
| Input Voltage |
230 V AC |
| Output Voltage |
230 V AC |
| Surge Energy Rating |
570 J |
| Waveform Type |
Stepped Sine Wave |
| Input Voltage Range |
160 V AC - 287 V AC |
| Output Frequency |
60 Hz |
| Input Frequency |
60 Hz |
| Load Capacity (VA) |
1.50 kVA |
|
|
| Technical Information |
|---|
| Application/Usage |
Workstation |
| Application/Usage |
Network Router |
| Application/Usage |
Network Hub |
| Application/Usage |
Network Bridge |
| Application/Usage |
Desktop Computer |
| Application/Usage |
POS Terminal |
| Dataline Protection |
RJ-45 |
| Emergency Power OFF |
No |
| Overload Protection |
Yes |
| Protection Type |
Lightning |
| Protection Type |
Surge |
| Plug/Connector Type |
IEC 60320 C14 |
| Cord Length |
3.05 m |
| Phase |
Single Phase |
| Receptacle Type |
IEC 60320 C13 |
| Transfer Time |
6 ms |
| Receptacle Detail |

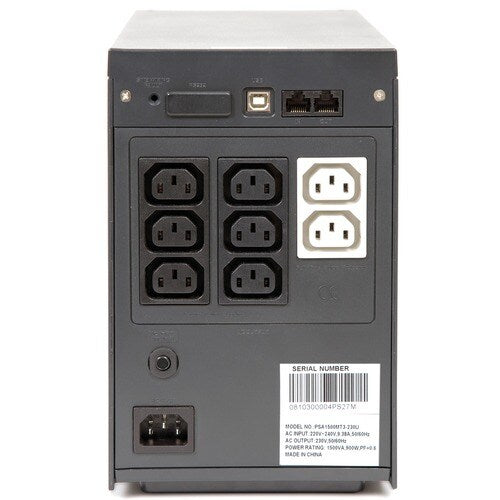

8 x IEC 60320 C13 |
