Zebra

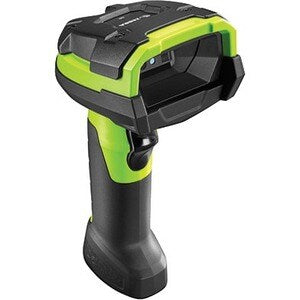

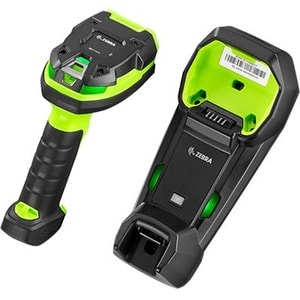

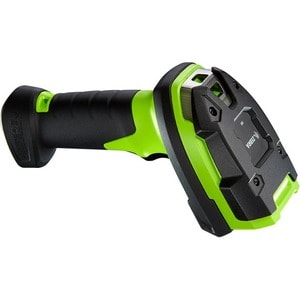

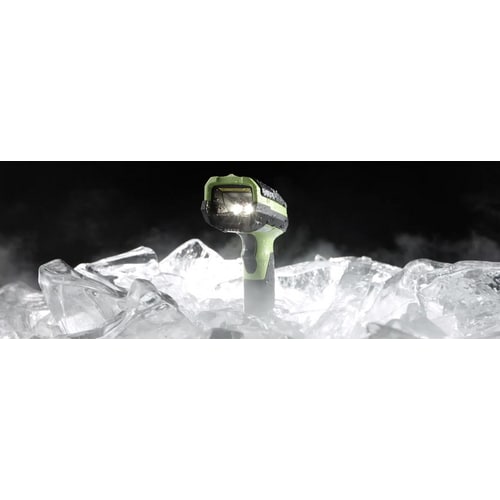

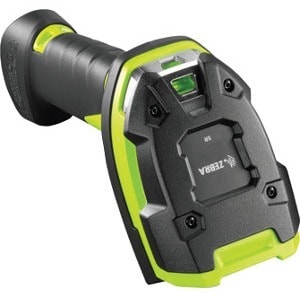

DS3608-SR RUGGED GREEN VIBRATION MOTOR U

DS3608-SR RUGGED GREEN VIBRATION MOTOR U

SKU:DS3608-SR3U4600VZW

$547.73 SGD
$1,047.00 SGD $547.73 SGD
Sale Pre-order with us via Whatsapp
Shipping calculated at checkout.

Click to WhatsApp us to confirm stock availability

View full details
Description Specifications
DS3608-SR RUGGED GREEN VIBRATION MOTOR U - Zebra
Interfaces/Ports
Host Interface USB
Miscellaneous
Application/Usage Manufacturing
Application/Usage Industrial
Application/Usage Warehouse
Environmentally Friendly Yes
Ingress Protection (IP) Rating IP65
Ingress Protection (IP) Rating IP67
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Physical Characteristics
Weight (Approximate) 306.2 g
Form Factor Handheld
Height 185.4 mm
Width 76.2 mm
Depth 132.1 mm
Product Color Industrial Green
Color Family Green
Rugged Yes
Power Description
Input Voltage 5.5 V DC
Power Source USB
Technical Information
Barcode Symbology Supported

1D:

  • Code 39
  • Code 128
  • Code 93
  • Codabar/NW7
  • Code 11
  • MSI Plessey
  • UPC/EAN
  • I 2 of 5
  • Korean 3 of 5
  • GS1 DataBar
  • Base 32 (Italian Pharma)

2D:

  • PDF417
  • Micro PDF417
  • Composite Codes
  • TLC-39
  • Aztec
  • DataMatrix
  • MaxiCode
  • QR Code
  • Micro QR
  • Chinese Sensible (Han Xin)
  • Postal Codes
  • DotCode

Digimarc:

  • Digital watermark technology

IUID Support:

  • Supports IUID parsing, the ability to read and separate IUID fields per application requirements
Connectivity Technology Cable
Scanning Distance 1.50 m
Scanner Range Standard Range
Drop Specification

Withstands multiple 8.0 ft./2.4 m drops to concrete
Image Sensor Type Imager
Cable Type Included USB
Scanning Capability 2D
Scanning Capability 1D
Field of View (Horizontal) 42°
Field of View (Vertical) 28°
Reading Angle (Skew) 60°
Reading Angle (Pitch) 60°
Reading Angle (Roll) 360°
Minimum Print Contrast 15%
Minimum Element Resolution (DataMatrix) 0.19 mm
Maximum Element Resolution (DataMatrix) 0.25 mm
