Zebra

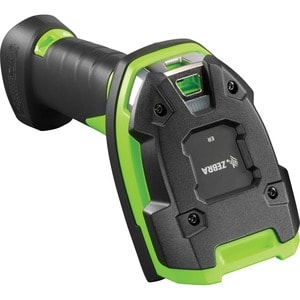

DS3678: RUGGED AREA IMAGER EXTENDED RA

DS3678: RUGGED AREA IMAGER EXTENDED RA

SKU:DS3678-ER2F003VZWW

Regular price $1,002.49 SGD
Regular price $1,526.86 SGD Sale price $1,002.49 SGD
Sale Pre-order with us via Whatsapp
Shipping calculated at checkout.

Click to WhatsApp us to confirm stock availability

View full details
Description Specifications
DS3678: RUGGED AREA IMAGER EXTENDED RA - Zebra
Battery Information
Battery Chemistry Lithium Ion (Li-Ion)
Battery Capacity 3100 mAh
Miscellaneous
Additional Information

USB Cable separate

Application/Usage Warehouse
Application/Usage Manufacturing
Application/Usage Industrial
Environmentally Friendly Yes
Ingress Protection (IP) Rating IP67
Ingress Protection (IP) Rating IP65
Network & Communication
Bluetooth Yes
Physical Characteristics
Weight (Approximate) 436 g
Form Factor Handheld
Height 185.4 mm
Width 76.2 mm
Depth 142.2 mm
Product Color Industrial Green
Rugged Yes
Power Description
Power Source Battery
Technical Information
Barcode Symbology Supported

1D:

  • Code 39
  • Code 128
  • Code 93
  • Codabar/NW7
  • Code 11
  • MSI Plessey
  • UPC/EAN, I 2 of 5
  • Korean 3 of 5
  • GS1 DataBar
  • Base 32 (Italian Pharma)

2D:

  • PDF417
  • Micro PDF417
  • Composite Codes
  • TLC-39
  • Aztec
  • DataMatrix
  • MaxiCode
  • QR Code
  • Micro QR
  • Chinese Sensible (Han Xin)
  • Postal Codes
  • DotCode

Digimarc:

  • Digital watermark technology

IUID Support:

  • Supports IUID parsing, the ability to read and separate IUID fields per application requirement
Connectivity Technology Wireless
Scanner Range Extended Range
Drop Specification

Withstands multiple 8.0 ft. /2.4 m drops to concrete

Scan Pattern Omni-directional
Image Sensor Type Imager
Scanning Capability 1D
Scanning Capability 2D
Field of View (Horizontal) 32°
Field of View (Vertical) 20°
Reading Angle (Skew) 60°
Reading Angle (Pitch) 60°
Reading Angle (Roll) 360°
Maximum Ambient Light 107639 lux
Minimum Print Contrast 25%
Minimum Element Resolution (DataMatrix) 0.25 mm
Maximum Element Resolution (DataMatrix) 5.08 mm
