Zebra

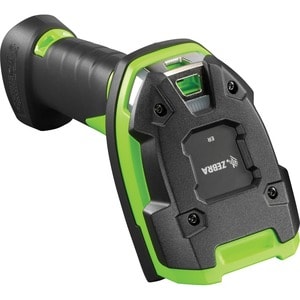

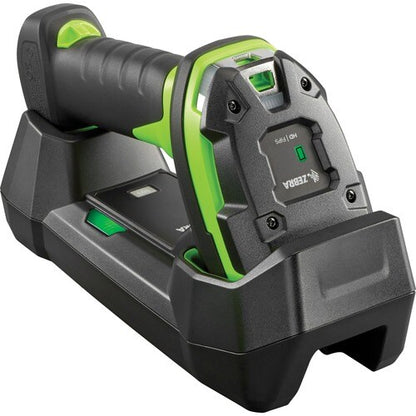

DS3678-ER RUGGED GREEN VIBRATION MOTOR

DS3678-ER RUGGED GREEN VIBRATION MOTOR

SKU:DS3678-ER3U4602FVW

Regular price $1,489.40 SGD
Regular price $2,268.48 SGD Sale price $1,489.40 SGD
Sale Pre-order with us via Whatsapp
Shipping calculated at checkout.

Click to WhatsApp us to confirm stock availability

View full details
Description Specifications
DS3678-ER RUGGED GREEN VIBRATION MOTOR - Zebra
Miscellaneous
Additional Information

USB Cable separate

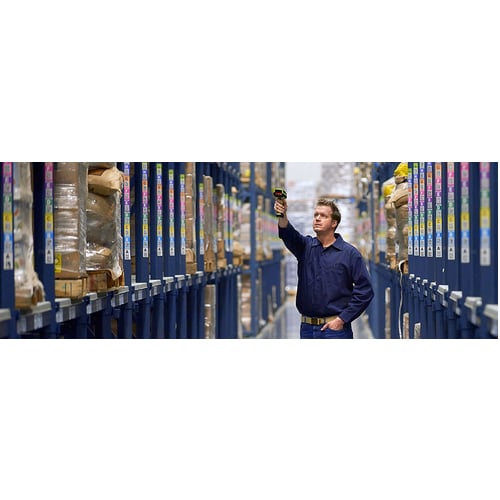

Application/Usage Warehouse
Application/Usage Industrial
Application/Usage Manufacturing
Environmentally Friendly Yes
Ingress Protection (IP) Rating IP65
Ingress Protection (IP) Rating IP67
Network & Communication
Bluetooth Yes
Physical Characteristics
Weight (Approximate) 436 g
Form Factor Handheld
Height 185.4 mm
Width 76.2 mm
Depth 142.2 mm
Product Color Industrial Green
Color Family Green
Rugged Yes
Technical Information
Barcode Symbology Supported

1D:

  • Code 39
  • Code 128
  • Code 93
  • Codabar/NW7
  • Code 11
  • MSI Plessey
  • UPC/EAN, I 2 of 5
  • Korean 3 of 5
  • GS1 DataBar
  • Base 32 (Italian Pharma)

2D:

  • PDF417
  • Micro PDF417
  • Composite Codes
  • TLC-39
  • Aztec
  • DataMatrix
  • MaxiCode
  • QR Code
  • Micro QR
  • Chinese Sensible (Han Xin)
  • Postal Codes
  • DotCode

Digimarc:

  • Digital watermark technology

IUID Support:

  • Supports IUID parsing, the ability to read and separate IUID fields per application requirement
Connectivity Technology Wireless
Scanning Distance 218.44 mm
Scanner Range Extended Range
Drop Specification Withstands multiple 8.0 ft. / 2.4 m drops to concrete
Scan Pattern Omni-directional
Image Sensor Type Imager
Cable Type Included USB
Scanning Capability 1D
Scanning Capability 2D
Field of View (Horizontal) 42°
Field of View (Vertical) 28°
Reading Angle (Skew) 60°
Reading Angle (Pitch) 60°
Reading Angle (Roll) 360°
Minimum Print Contrast 15%
Minimum Element Resolution (DataMatrix) 0.25 mm
Maximum Element Resolution (DataMatrix) 5.08 mm
