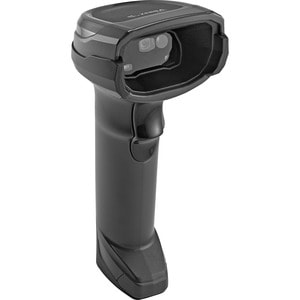

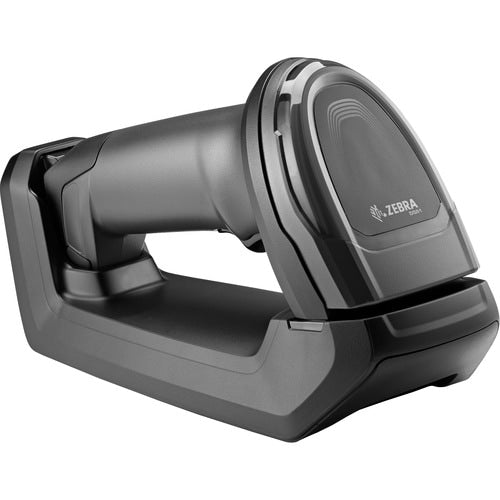

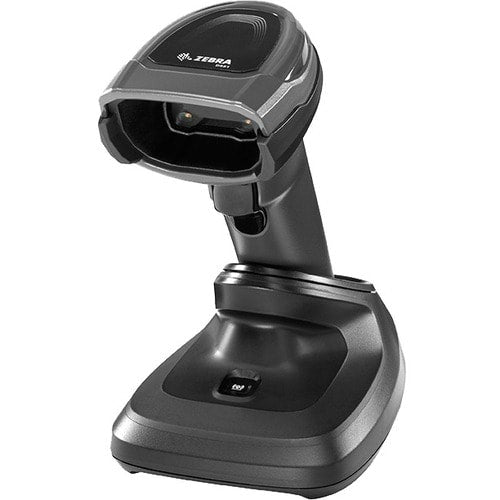

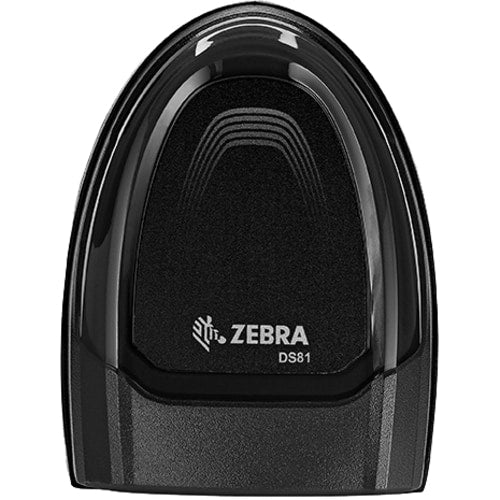

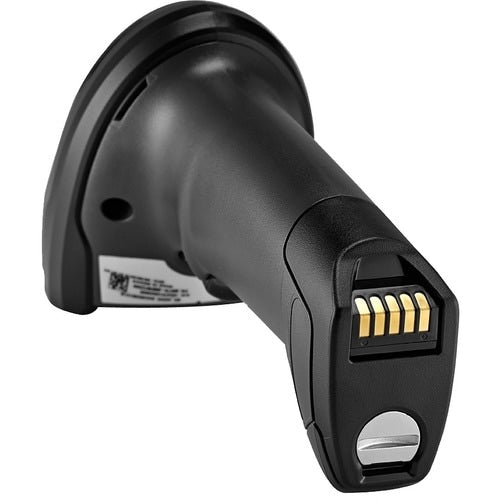

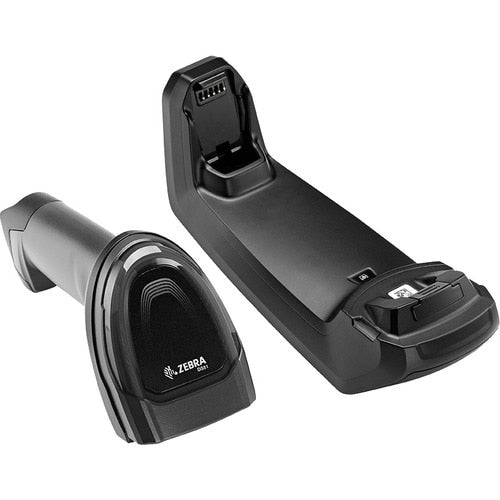

DS8178-SR BLACK FIPS STANDARD CRADLE USB - Zebra
Miscellaneous |
Application/Usage |
Hospitality |
Application/Usage |
Transportation |
Application/Usage |
Retail |
Application/Usage |
Government |
Application/Usage |
Light/Clean Manufacturing |
Application/Usage |
Loyalty Program |
Application/Usage |
Logistics |
Environmentally Friendly |
Yes |
Ingress Protection (IP) Rating |
IP42 |
Network & Communication |
Bluetooth |
Yes |
Physical Characteristics |
Weight (Approximate) |
235.3 g |
Form Factor |
Handheld |
Height |
167.6 mm |
Width |
66 mm |
Depth |
106.7 mm |
Product Color |
Twilight Black |
Technical Information |
Barcode Symbology Supported |
1D: - Code 39
- Code 128
- Code 93
- Codabar/NW7
- Code 11
- MSI Plessey
- UPC/EAN
- I 2 of 5
- Korean 3 of 5
- GS1 DataBar
- Base 32 (Italian Pharma)
2D: - PDF417
- Micro PDF417
- Composite Codes
- TLC-39
- Aztec
- DataMatrix
- MaxiCode
- QR Code
- Micro QR
- Chinese Sensible (Han Xin)
- Postal Codes
|
Connectivity Technology |
Wireless |
Scanning Distance |
934.72 mm |
Scanner Range |
Standard Range |
Drop Specification |
Designed to withstand 50 drops at 6.0 ft./1.8 m to concrete |
Scan Pattern |
Linear |
Image Sensor Type |
Imager |
Cable Type Included |
USB |
Scanning Capability |
2D |
Scanning Capability |
1D |
Field of View (Horizontal) |
42° |
Field of View (Vertical) |
28° |
Reading Angle (Skew) |
60° |
Reading Angle (Pitch) |
60° |
Reading Angle (Roll) |
360° |
Maximum Ambient Light |
96840 lux |
Minimum Print Contrast |
16% |
Minimum Element Resolution (Code 39) |
0.08 mm |
Maximum Element Resolution (Code 39) |
0.51 mm |
Minimum Element Resolution (DataMatrix) |
0.19 mm |
Maximum Element Resolution (DataMatrix) |
0.25 mm |
Minimum Element Resolution (PDF417) |
0.13 mm |
Maximum Element Resolution (PDF417) |
0.17 mm |
