Zebra

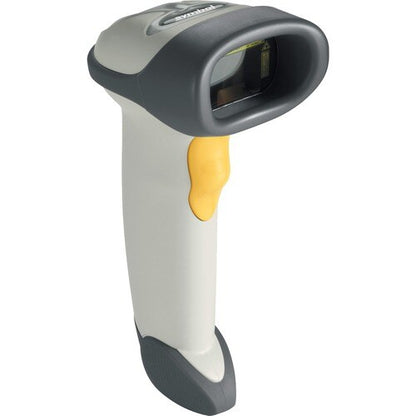

LS2208 SCANNER KIT USB STD WHITE

LS2208 SCANNER KIT USB STD WHITE

SKU:LS2208-SR20001R-UR

$169.49 SGD
$273.95 SGD $169.49 SGD
Sale Pre-order with us via Whatsapp
Shipping calculated at checkout.

Click to WhatsApp us to confirm stock availability

View full details
Description Specifications
Interfaces/Ports
Host Interface USB
Miscellaneous
Additional Information

Supported Interfaces:

  • Serial
  • Keyboard Wedge
  • Wand Emulation
  • IBM 468X/469X
  • USB
  • Synapse

USB Cable separate
Application/Usage Retail
Application/Usage Education
Package Contents
  • Symbol LS2208 Handheld Barcode Scanner
  • USB Cable
  • Gooseneck Stand
    		•
    Compatibility
    • IBM 468x/469x terminals.
    Platform Supported PC
    Certifications & Standards
    • Environmental: RoHS 2002/95/EEC

    Electrical Safety:

    • UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950

    EMI/RFI:

    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
    • Taiwan EMC
    • Japan VCCI/MITI/Dentori

    Laser Safety::

    • CDRH Class II
    • IEC Class 2
    Environmentally Friendly Yes
    Ingress Protection (IP) Rating IP30
    Physical Characteristics
    Weight (Approximate) 146 g
    Form Factor Handheld
    Height 152.4 mm
    Width 63.5 mm
    Depth 84.8 mm
    Product Color White
    Power Description
    Input Voltage 5 V DC
    Technical Information
    Barcode Symbology Supported
    • UPC/EAN
    • UPC/EAN Supplementals
    • UCC/EAN 128
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 128 Full ASCII
    • Codabar
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • IATA
    • RSS Variants
    • Chinese 2 of 5
    Connectivity Technology Cable
    Scanning Distance 760 mm
    Light Source Laser
    Drop Specification Unit functions normally after repeated 5 ft./1.5 m drops to concrete
    Scan Pattern Bi-directional
    Scan Rate 100 scan/s
    Image Sensor Type Linear
    Stand Included Yes
    Cable Type Included USB
    Scanning Capability 1D
    Reading Angle (Skew) 60°
    Reading Angle (Pitch) 65°
    Reading Angle (Roll) 30°
    Maximum Ambient Light 86111 lux
    Minimum Print Contrast 20%
    Minimum Element Resolution (Code 39) 0.13 mm
    Maximum Element Resolution (Code 39) 1.02 mm
