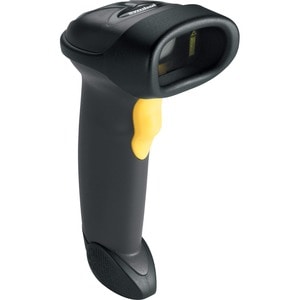

Zebra
SKU:LS2208-SR20007R-UR
Couldn't load pickup availability
Click to WhatsApp us to confirm stock availability
View full details
| Interfaces/Ports | |
|---|---|
| Host Interface | USB |
| Miscellaneous | |
| Application/Usage | Retail |
| Application/Usage | Education |
| Package Contents |
|
| Platform Supported | PC |
| Certifications & Standards |
Electrical Safety:
EMI/RFI:
Laser Safety::
|
| Environmentally Friendly | Yes |
| Ingress Protection (IP) Rating | IP30 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 146 g |
| Form Factor | Handheld |
| Height | 152.4 mm |
| Width | 63.5 mm |
| Depth | 84.8 mm |
| Product Color | Black |
| Color Family | Black |
| Rugged | Yes |
| Power Description | |
| Input Voltage | 5 V DC |
| Power Source | USB |
| Technical Information | |
| Barcode Symbology Supported |
|
| Connectivity Technology | Cable |
| Scanning Distance | 431.80 mm |
| Light Source | Laser |
| Scanner Range | Standard Range |
| Drop Specification | Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete |
| Scan Pattern | Single Line |
| Scan Rate | 100 scan/s |
| Image Sensor Type | Linear |
| Stand Included | Yes |
| Cable Type Included | USB |
| Scanning Capability | 1D |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 30° |
| Maximum Ambient Light | 86111 lux |
| Minimum Print Contrast | 20% |
| Minimum Element Resolution (Code 39) | 0.08 mm |
| Maximum Element Resolution (Code 39) | 1.02 mm |
