| Display & Graphics |
| Display Screen |
Yes |
| Screen Size |
10.2 cm (4") |
| Display Screen Type |
LCD |
| Fonts & Emulation |
| Language Emulation |
PDF |
| Language Emulation |
EZPL |
| Language Emulation |
EPL2 |
| Language Emulation |
XML |
| Language Emulation |
ZPL II |
| Language Emulation |
ZPL |
| Language Emulation |
EPL |
| Language Emulation |
ZBI |
| Interfaces/Ports |
| USB |
Yes |
| USB Standard |
USB 2.0 |
| USB Host |
Yes |
| Media Types & Handling |
| Media Thickness |
190 µm |
| Maximum Roll Diameter |
127 mm |
| Media Type |
Die-cut Label |
| Media Type |
Wristband |
| Media Type |
Tag Stock |
| Media Type |
Roll Fed |
| Media Type |
Receipt |
| Media Type |
Label |
| Media Type |
Fanfold |
| Media Type |
Continuous Receipt |
| Media Type |
Continuous Label |
| Media Type |
Black Mark |
| Media Sensor |
Moveable Reflective/Black Mark Sensor |
| Media Sensor |
Full Width Sensor |
| Media Sensor |
Multi-position Transmissive/Gap Sensor |
| Maximum Label Width |
118.11 mm |
| Maximum Label Length |
990.60 mm |
| Memory |
| Flash Memory |
512 MB |
| Standard Memory |
256 MB |
| Miscellaneous |
| Package Contents |

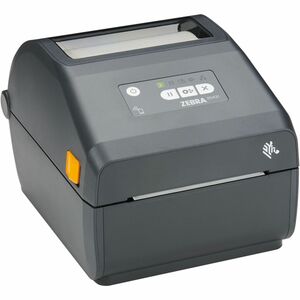

ZD420 4-Inch Desktop Printer
Empty Ribbon Take-UP Cores (1 in. and 0.5 in.),
2 x 300 m Ribbon Core Adapters for Non-Zebra Ribbon
AC Power Supply
Power Cords
USB Cable
Quick Start Guide
Regulatory Guide
|
| Platform Supported |
PC |
| Platform Supported |
iOS |
| Certifications & Standards |
|
| Environmentally Friendly |
Yes |
| Energy Star |
Yes |
| Network & Communication |
| Wireless LAN |
Yes |
| Near Field Communication (NFC) |
Yes |
| Power Description |
| Power Source |
AC Supply |
| Frequency |
60 Hz |
| Frequency |
50 Hz |
| Software |
| Operating System Supported |
|
| Technical Information |
| Application/Usage |
Retail |
| Application/Usage |
Manufacturing |
| Application/Usage |
Healthcare |
| Application/Usage |
Government |
| Application/Usage |
Desktop |
| Application/Usage |
Transportation & Logistic |
| Barcode Symbology Supported |
UPC |
| Barcode Symbology Supported |
UPC-A |
| Barcode Symbology Supported |
UPC-E |
| Barcode Symbology Supported |
AZTEC |
| Barcode Symbology Supported |
Codabar |
| Barcode Symbology Supported |
Codablock |
| Barcode Symbology Supported |
Code 11 |
| Barcode Symbology Supported |
Code 128 |
| Barcode Symbology Supported |
Code 39 |
| Barcode Symbology Supported |
Code 49 |
| Barcode Symbology Supported |
Code 93 |
| Barcode Symbology Supported |
Data Matrix |
| Barcode Symbology Supported |
EAN 2 or 5 Digit Extension |
| Barcode Symbology Supported |
EAN-13 |
| Barcode Symbology Supported |
EAN-8 |
| Barcode Symbology Supported |
ISBT-128 |
| Barcode Symbology Supported |
LOGMARS |
| Barcode Symbology Supported |
Maxi Code |
| Barcode Symbology Supported |
Micro PDF |
| Barcode Symbology Supported |
MSI |
| Barcode Symbology Supported |
PDF-417 |
| Barcode Symbology Supported |
Planet Code |
| Barcode Symbology Supported |
Plessey |
| Barcode Symbology Supported |
POSTNET |
| Barcode Symbology Supported |
QR Code |
| Barcode Symbology Supported |
Standard 2 of 5 |
| Maximum Print Width |
104 mm (4.09") |
| Recommended Use |
Label/Receipt Print |
| Features |
Dual Wall Frame |
| Features |
Status Indicator |
| Mobile Device Printing |
Yes |
| Print Color Capability |
Monochrome |
| Real Time Clock |
Yes |
| Maximum Print Resolution (dpi) |
203 |
